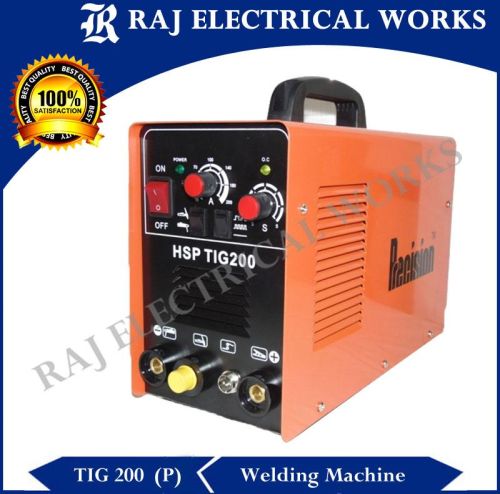

Welding methods: d.c constant current tig welding pulse, d.c tig welding and manual arc welding.
Applicable material: stainless steel, low carbon steel, high strength steel & cr-mo steel, copper, titanium, etc.
Additional features:
i) 4t controlling capability used for long welding line operations. It reduces the labor intensity for the welders
ii) 4t automatic controlling functions on shut down with intelligence design to prevent futile operations
iii) the machine emc (electromagnetic compatibility function) with powerful grid filtering ability to reduce power supply contamination. The internal circuit & components are well protected by
excellent interference design resulting in more stability and better reliability.
Iv) the machine is equipped with power & voltage compensation device within the power voltage is fluctues during working + 15% of rated voltage the machine works without being affected.
Input power voltage (v) - ac220v
input frequency (hz) - 5060
rated input current (a) - 23
non-load voltage (v) - 56
output current range (a) - 10-180
rated output voltage (v) - 17.2
rated duty cycle - 60
load loss (w) - 40
power factor - 0.73
insulation class - f
protection class - ip21
weight (kg) - 8.8
size of the machine (mm) - 371x155x295.
