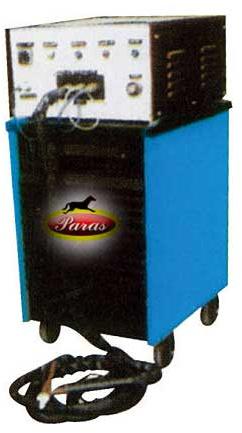

Tig welding machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We offer TIG Welding Machine. We bring a wide range of TIG Welding Machine that offer High Efficiency, Minimum Maintenance, Low running cost and saves energy. The TIG Welding Machine has Sturdy Construction and Prevents electrode freezing in MMAW process, and has Automatic current stabilizing and Minimum spatter. The Modular design of PCB's in the TIG Welding Machine reduces breakdown time.

View More Details

Send Enquiry

Company Information

Parmo Welding Machines (p) Limited

Ring Road, Rajkot, Gujarat

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 24AAGCP2330R1Z7

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Features	Easy to Operate Extra smooth arc No breakdown Rugged design Regular welding atmosphere
Equipment Consist of	D.C. Power Source with inbuilt / separate Tig Welding Control Console Unit Water Cooling System, (Water cooling system consist of Water Pump, Rust proof Water Tank, ( Cooling Fan and Radiator on demand) Tig Welding Torch with 4/8 mtrs. long Flow meter with pressure regulator Set of accessories
For Extra Safety and Protection	Outer surface is powder coated corrosion resistance The set is provided with tripping system where if output welding cable short circuit, immediately current comes to minimize thus no energy is wasted and cable or machine does not burn.
Optional	Set of welding accessories. Voltmeter. (Amps. Meter fitted) Energy Saver and Arc Force Facility Tig Spot Welding Facility to spot one sided spot
Pulsar Unit	Peak Timing : 0.1 to 2.5 Sec. Background Timing : 0.1 to 2.5 Sec. Up Slope Timing : 0.1 to 2.5 Sec. Down Slope Timing : 0.1 to 2.5 Sec. Details of H.F. Unit H.F. Cut off timing : 0 to 10 Sec. Gas post flow/pre flow : 0 to 10 Sec. Input supply : 220, 1 Ph. (From Power Source)
Applications	Automobile Industries Workshops Engineering Applications

Specifications

Item	Unit	SPT 150	SPT 200	WD 250	WD 300	FT 400	FT 500
Rated Supply	V	210+-10%	210+-10%	400+-10%	400+-10%	400+-10%	400+-10%
Phase	Ph.	1	1	3	3	3	3
Frequency	Hz.	50	50	50	50	50	50
Load	KVA	5.5	8	12.5	14	17	26
Min. Current	A	15	20	20	20	20	25
Max. Current	A	150	200	250	300	400	500
OCV	V	85	90	90	90	102	105
Puls Freq.	Hz	-	-	-	-	1.5~12	0.5~12
Puls Width	%	-	-	-	-	10~90	10~90
