Tile Cutting Machines

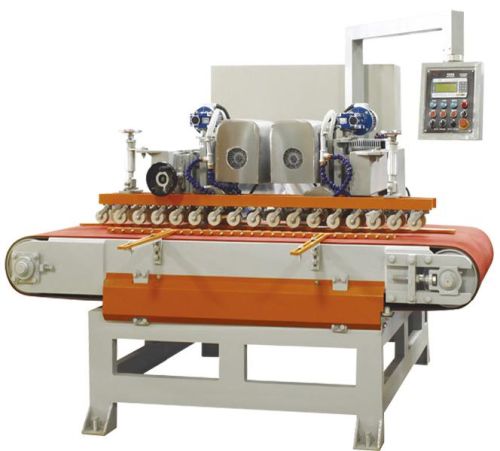

St-1000 cnc granite cutting machine
functions:
st series full automatic continuous tiles cutting machine is suit for cutting big size floor tiles or wall tiles(such as polishing tiles) into small size tiles. The processing width ranges is 30~800mm. They are capable of processing tiles with different width as well as chamfering, especially suitable for notching the ceramic tiles(such as classical tiles and glaze tiles). To work with special pressure wheels, it also can cut 15*15mm mosaic tiles.
structure:
l the conveyor belt is firmed and pasted from two tiers multiple plane belt and v-shaped belt. The conveyor belt is supplied by famous manufacture at world, it can guarantee many years of working life and high precision of cutting.
L the main cutting axis uses special steel with special processing, so it has long working life and high accuracy of cutting. The vice bearing shaft of main cutting axis adopts rotated oil to cool, and the lubricating effect is best.
L the flange and gauge tool of the cutting disc are all made of aero metals. They are durable, ametabolic and high precision.
