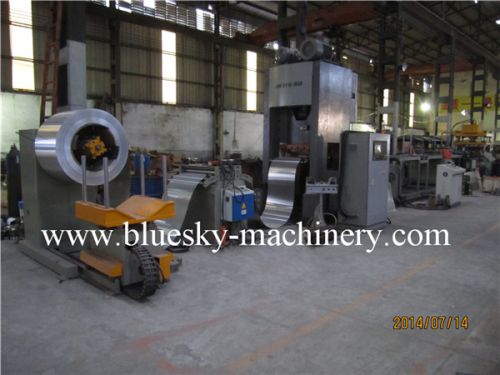

Contact SupplierWe are offering tile making machine, fully auto ceiling tile production line actl-600 ceiling tile making machine is widely used in making aluminium or galvanized steel ceiling tile, etc. With size of 600x600, 300x300 or 1200x600mm. It is a fully automatic production line, mainly composed of decoiler, straightener, perforating press, servo feeder & hydraulic press. Plc controlled. 1 operator is required for 1 whole production line. High productivity, less manpower. process: decoiling→ straightening→perforating→ feeding→ corner & length cutting→ straightening (optional) → automatic 4 sides bending. technical parameter: model sheet thickness range (mm) coil width (mm) coil weight (ton) punch speed (mmin) capacity (kw) forming speed (pcsmin) remarks mctl-600 0.35-2.0 700 5 50-80 40 3-5 automatic perforating line, manual 4 sides forming. Actl-600 0.35-2.0 700 5 50-80 50 3-5 automatic perforating line, automatic 4 sides bending. Actl-600 0.35-2.0 700 5 50-80 60 7-10 2 sets automatic perforating line, automatic 4 sides forming actl-600 0.35-2.0 700 5 50-80 60 15-20 automatic diagonal perforating line, automatic 4 sides forming (double sides forming.) note: the specification above is for your reference only, if any changes without any notice.
