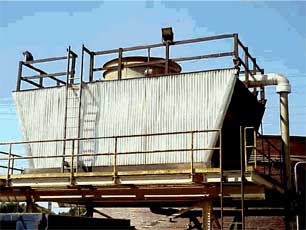

Timber Cooling Tower

Precision cooling system is the prime manufacturer and exporter of Timber Cooling Tower in the markets. Designed by experts with precision, our Timber Cooling Tower are consistently demanded by the clients
Known for
induced draft counter flow or cross flowhigh efficiencymaintenance freeminimum water lossbuilt for industrial & commercial market
specifications
double inlet cross flow – treated pine wood or frp / hdgsingle inlet cross flow – frptough fiberglass casing with r c c basinpr. Treated timber / wood or hot dip galvanized structureip 55 protected foot mounted motor / low rpm motorsspeed reduction gearbox / variable speed pulley & belt driveaerodynamically designed axial flow type, energy saving fan in frp / al. Alloy construction with variable pitch anglesplash bar in wood / perforated pvc v barsfrp / marine ply wood hot water distribution deckpp target spray nozzles systemmist / drift eliminators in wood / pvcs.s twisted nails & galvanized fastenersdouble inlet induced draft cross flow series is a field-erected, splash fill, cross flow, wood cooling towerdesigned to serve all normal cooling water systems—as well as those “dirty water” systemsplace the long term operation of a film fill tower in jeopardyseries is evolved from the cross flow concept of cooling towers of design advancements that our customers have found valuable
applications :
fertilizer plantschemical and petrochemical plantsdairies and defense factoriesautomobile industrycement and sugar industriesmachine tools manufacturing unitfurnaces manufacturing unitdiesel gen-set manufacturing unitair gas compressors manufacturing unit
mechanical type, induced draft cross flow of cooling towers
cross flow cooling tower
crossflow is a design in which the air flow is directed perpendicular to the water flow (see diagram below). Air flow enters one or more vertical faces of the cooling tower to meet the fill material. Water flows (perpendicular to the air) through the fill by gravity. The air continues through the fill and thus past the water flow into an open plenum area. A distribution or hot water basin consisting of a deep pan with holes or nozzles in the bottom is utilized in a crossflow tower. Gravity distributes the water through the nozzles uniformly across the fill material
