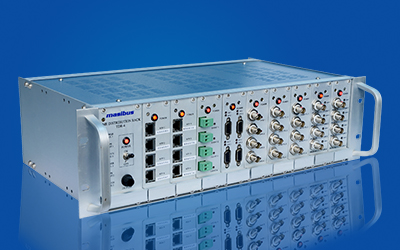

Time Distribution Rack

TDR-4 Time Distribution Rack amplifies input signal which is connected on rear side and distributes via different timing outputs. Time Distribution Rack (TDR-4) accepts signals like 1PPS, IRIG-B TTL, IRIG-B Modulated, NMEA (RS232) and Event from GPS and gives four isolated outputs of each signal same as input. Time Signal Splitter TDR-4 is housed in a compact 19’’, 3U rack mounted package. It has nine output card slots and one power supply card slot. Each output card has 4 outputs thus maximum 36 outputs of different or same type possible in single TDR-4 Time Signal Splitter TDR-4 has High Intensity LEDs on each card to shows the power status of the card and four numbers of isolated outputs signal status. All the inputs are connected on the rear side & all the output signals are on the front of the equipment.
