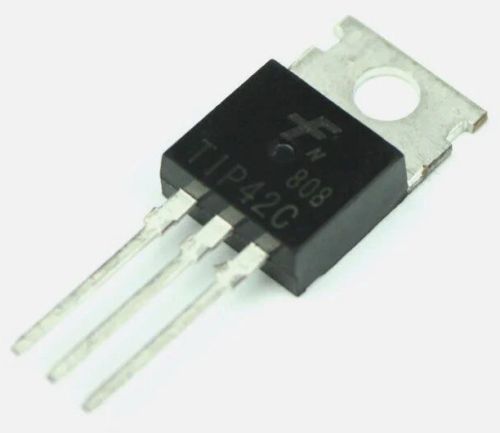

TIP42 PNP Power Transistor (TO-220)

TIP42 Transistor is a PNP power transistor with a maximum gain of 75. It has a collector continuous current of 6A and a Collector Emitter voltage of 100V. The base current for TIP42C transistor is about 3A and the Emitter base voltage is 5V. The TIP42 Bipolar Power Transistor is designed for a general purpose power amplifier and switching applications.
FEATURES & SPECIFICATIONS
Collector-Emitter Voltage (VCEO): -40V
Collector-Base Voltage (VCBO): -40V
Emitter−Base Voltage (VEB): -5.0V
Collector Current (Ic): 6A
DC Current Gain (hFE): 15 to 75
Power Dissipation (PD): 65W
Minimum Operating Temperature: -65 °C
Maximum Operating Temperature: 150 °C
fT Current Gain Bandwidth Product (VCE = 10V, IC = 500mA) 3.0 MH
Available in TO-220 Package
The TIP41, TIP41A, TIP41B, TIP41C (NPN); and TIP42, TIP42A, TIP42B, TIP42C (PNP) are complementary devices. It is available in TO-220 Package. You can also check out other Power Transistors from TIP series such as TIP31(NPN), TIP41 (NPN), TIP42 (PNP), TIP127 (PNP), TIP122 (NPN), TIP2955 (PNP).
