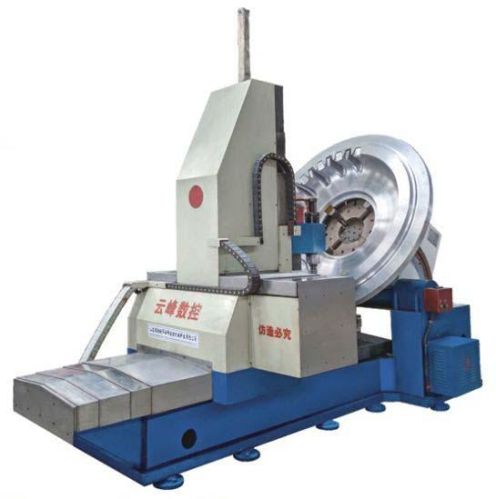

Tire Mold CNC Milling Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Tire Mold CNC Milling Machine is one of the special tire mold processing machines. The main mechanism of our Tire Mold CNC Milling Machine has been granted a national patent. The machine is provided with four servo axis (three straight axes and one rotary axis) and one working disc. Our Tire Mold CNC Milling Machine does not require EDM processing, which reduces the cost and improves production efficiency. It has become the first choice for tire mold processing.

View More Details

Send Enquiry

Product Details

Technical Specifications

Model	YFX-2500F
Operating system	Taiwan Pou Yuen system (optionai)
X-axis stroke	600mm	The stroke is subject to variation as per customer requirements
Y- axis stroke	1200mm
Z- axis stroke	900mm
A- axis	0~360°
A- axis rotary axis	Worm gear high precision indexing plate (with automatic clearance elimination device)
Each servo axis motor	Huada and Yaskawa (optional)
Spindle speed	50-8,000 revolution/min (Taiwan Kenturn,optional)
Spindle power	7.5W
Screw	Taiwan HIWIN ball screw
Linear guide rail	Taiwan HIWIN linear guide rail
Chuck diameter	1,250mm(steel chuck)
Machining diameter	500~2500mm
Maximum load	5000kg
Weight of machine tool	12000kg
Boundary dimensinon of machine tool	4200×2300×2700mm
Positioning accuracy	0.02mm/300mm
Repeated positioning accuracy	0.009mm/300mm
Rotary scope of working disc	0~90°
Maximum machining speed	6000mm/min
Fast feeding speed	10000mm/min
