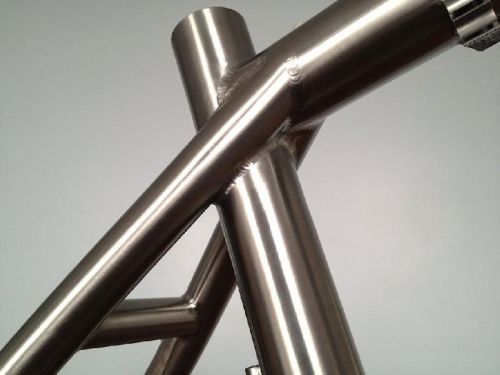

Titanium Bicycle Tubes

Get Latest Price

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Zhangjiagang Zhongke Titanium Material Co., Ltd

Jiangsu P.R

View Number

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 2010

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Titanium Alloy 3Al-2.5V (Grade 9) is a medium strength alloy with good weldability and fabricability for mildly reducing to mildly oxidizing media. It is a compromise between the facility of welding and manufacturing of the pure grades and the high strength of Grade 5. It has great corrosion resistance and can be used extensively in aerospace, chemical processing, medical, marine, and automotive. Typically this alloy is supplied in two Conditions Annealed and CWSR ( Cold Worked & Stress Relieved).
Use of titanium in sport was the oldest and so far the largest segment of use of titanium in consumer applications. The reason why titanium is popular in sport equipment is simple - it provides superior to every other metal ratio of weight to strength. Use of titanium in bicycles was the first major application of titanium in sport equipment and goes back to approximately 30 years ago. Major use is tubing for the frames; material used is Ti 3Al-2.5V (ASTM Grade 9). Other parts made from titanium alloys are brakes, cassettes, seat springs.

Applications : Bicycle frame, Honeycombs, bellows, tubing for hydraulic systems, golf club shafts, tennis racquets.

Flattening Value

Outside diameter	Thickness	E	Flattening height
0.625"(15.88mm)	0.028"(0.71mm)	0.04	0.37"(9.52mm)
0.625"(15.88mm)	0.035"(0.89mm)	0.04	0.38"(9.65mm)
0.75"(19.05mm)	0.035"(0.89mm)	0.04	0.42"(10.67mm)
0.875"(22.23mm)	0.032"(0.81mm)	0.04	0.43"(10.92mm)
0.875"(22.23mm)	0.035"(0.89mm)	0.04	0.46"(11.69mm)
1"(25.4mm)	0.035"(0.89mm)	0.03	0.55"(13.97mm)
1.25"(31.75mm)	0.035"(0.89mm)	0.03	0.62"(15.75mm)
1.25(31.75mm)	0.045"(1.143mm)	0.03	0.7"(17.78mm)
1.375"(34.925mm)	0.028"(0.71mm)	0.03	0.57"(14.48mm)
1.375"(34.925mm)	0.032"(0.81mm)	0.03	0.62"(15.748mm)
1.375"(34.925mm)	0.038"(0.97mm)	0.03	0.68"(17.272mm)
1.45"(36.83mm)	0.07(1.778mm)	0.03	0.92"(23.27mm)
1.5"(38.1mm)	0.028"(0.71mm)	0.03	0.59"(14.99mm)
1.5"(38.1mm)	0.035"(0.89mm)	0.03	0.68"(17.27mm)
1.563"(39.01mm)	0.124"(3.15mm)	0.03	1.17"(29.72mm)
1.75"(44.45mm)	0.028"(0.71mm)	0.03	1.17"(29.72mm)
1.75"(44.45mm)	0.038"(0.965mm)	0.03	0.76"(19.30mm)
1.89(48.01mm)	0.038(0.965mm)	0.03	0.78"(19.81mm)
1.89(48.01mm)	0.047"(1.19mm)	0.03	0.88"(22.35mm)
1.89(48.01mm)	0.085"(2.16mm)	0.03	1.17"(29.72mm)
2.063"(52.4mm)	0.136"(3.45mm)	0.03	37.08"(37.08mm)
2.244"(56.99mm)	0.157"(3.99mm)	0.03	1.62"(41.15mm)

Specifications

Outside diameter	Thickness	E	Flattening height
0.625"(15.88mm)	0.028"(0.71mm)	0.04	0.37"(9.52mm)
0.625"(15.88mm)	0.035"(0.89mm)	0.04	0.38"(9.65mm)
0.75"(19.05mm)	0.035"(0.89mm)	0.04	0.42"(10.67mm)
0.875"(22.23mm)	0.032"(0.81mm)	0.04	0.43"(10.92mm)
0.875"(22.23mm)	0.035"(0.89mm)	0.04	0.46"(11.69mm)
1"(25.4mm)	0.035"(0.89mm)	0.03	0.55"(13.97mm)
1.25"(31.75mm)	0.035"(0.89mm)	0.03	0.62"(15.75mm)
1.25(31.75mm)	0.045"(1.143mm)	0.03	0.7"(17.78mm)
1.375"(34.925mm)	0.028"(0.71mm)	0.03	0.57"(14.48mm)
1.375"(34.925mm)	0.032"(0.81mm)	0.03	0.62"(15.748mm)
1.375"(34.925mm)	0.038"(0.97mm)	0.03	0.68"(17.272mm)
1.45"(36.83mm)	0.07(1.778mm)	0.03	0.92"(23.27mm)
1.5"(38.1mm)	0.028"(0.71mm)	0.03	0.59"(14.99mm)
1.5"(38.1mm)	0.035"(0.89mm)	0.03	0.68"(17.27mm)
1.563"(39.01mm)	0.124"(3.15mm)	0.03	1.17"(29.72mm)
1.75"(44.45mm)	0.028"(0.71mm)	0.03	1.17"(29.72mm)
1.75"(44.45mm)	0.038"(0.965mm)	0.03	0.76"(19.30mm)
1.89(48.01mm)	0.038(0.965mm)	0.03	0.78"(19.81mm)
1.89(48.01mm)	0.047"(1.19mm)	0.03	0.88"(22.35mm)
1.89(48.01mm)	0.085"(2.16mm)	0.03	1.17"(29.72mm)
2.063"(52.4mm)	0.136"(3.45mm)	0.03	37.08"(37.08mm)
2.244"(56.99mm)	0.157"(3.99mm)	0.03	1.62"(41.15mm)
