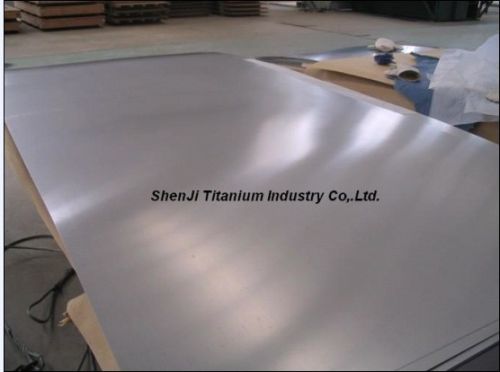

Titanium Foil

Titanium plate
Standard: ASTM B 265
Material: Gr.1, 2, 3, 5, 7, 9, 12
Thickness: 0.3-60mm
Width: 4.1~60.0mm
Cold rolling 0.3~4.0mm
Gr1,Gr2, Gr3,Gr5
Hot rolling >4.1~60mm
Cold rolling 0.5~4.0mm
Gr3,Gr4,
Hot rolling 4.1~60mm
Cold rolling 0.8~4.0mm
Technology
Standard ASTM B265,ASTM F136,ASTM F 67,ASME SB265,ASTM B381, etc.
Applications Chemical equipment, Rack, electrode, exchanger, Condensator, Evaporimeter, Medicine, Medical etc.
Packing Plastic as inside, plywood case as outside, or according to client's demand
titanium sheet for plate heat exchanger
Grade Size / mm thickness width length standard
Gr1,Gr7 0.5-0.8mm 200-500 500-2000 M ASTM B265
0.9~1.0mm 200-500 500-2000 M ASTM B265
0.5-0.8mm 500-800 800-2000 M ASTM B265
0.9~1.0mm 500-800 800-2000 M ASTM B265
Medical titanium plate
No Grade Size/mm State Standard
1 Gr1,Gr2,Gr3 0.3-60mm ( 500~1000 ) bright ASTM F 67
2 Gr5 Thk0.3~60mm bright ASTM F 136
Titanium plate for surgical
Descriptions Grades Dimensions Specification
Titanium sheet Titanium and Titanium Alloy sheet(Chinese) TA0-TA3 (0.3-30mm) (width)1350 GB/T3621-94 GB-T 3621-2007
TA9 (0.3-30mm) width 1350 GB/T3621-94 GB-T 3621-2007
TA10 (0.3-30mm) width 1350 GB/T3621-94 GB-T 3621-2007
TC4 (0.3-30mm) width 1350 GB/T3621-94 GB-T 3621-2007
Titanium and Titanium Alloy sheet(American) Gr1 (0.3-30mm) width 1350 ASTM B 265
Gr2 (0.3-30mm) width 1350 ASTM B 265
Gr5 (0.3-30mm) width 1350 ASTM B 265
Gr7,Gr12 (0.3-30mm) width 1350 ASTM B 265 ,GOST 22178-1976.
titanium plate for surgical implants
1)Start from raw material,stable performance
2)competitive price
3)quick delivery
titanium plate for surgical implants
Grade 3, Unalloyed titanium offering optimum ductility and cold formability with useful strength, high-impact toughness, and excellent weldability. Highly corrosion resistant in oxidizing and mildly reducing environments, including chlorides.
Weldability excellent.
Grade 3 has very good weldability. Being substantially single phase material, the microstructure of the alpha phase is not affected greatly by thermal treatments or welding temperatures.
Therefore, the mechanical properties of a correctly welded joint are equal to, or exceed those of the parent metal and show good ductility.
Typical Applications
Equivalent to Grade 1 and 2, and eminently suitable where high strength is needed.
Grade 3 Chemical composition(weight%)(Maximum values unless range is shown)
O N C H Fe Al V Ni Mo Others Residuals
0.35 0.05 0.08 0.015 0.30 0.4
Standards:GB/T, GJB, HB,ASTM, AMS, ASME,MIL,JIS
Looking forward to a good cooperation with you!
Note:We provide free samples.Please contact our Foreign Trade Mnager Ms. Rhea Wang.rheatitanium at hotmail dot com.
