Contact SupplierThe titanium forgings we mainly produce include titanium forged ring and titanium flange. We can also offer the customized products according to the detailed requirements or the drawings from the customers. The machining plant enables us to offer more precision forgings.
Specification
Titanium ring
Standard ASTM B381, AMS 4928
Material F1, F2, F5, F7, F9, F12
Size Outer Diameter Inner Diameter Section Height(mm)
200-400 100-300 35-120
400-700 150-500 40-160
700-900 300-700 50-180
900-1300 400-1100 70-250
Technique Forging, machining
Heat treatment Annealed

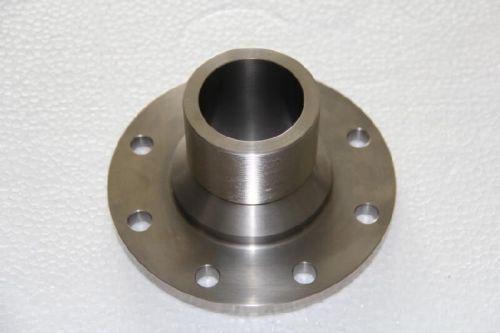

Titanium flange
Standard ASTM B381, ANSIASME B16.5, DIN 2630~26361092, AMS 4928
Material F1, F2, F5, F7, F9, F12
Size DN10~600 (12''~80'') or as the drawings
Pressure (DIN) PN6, PN10, PN16, PN25, PN250
(ANSI) CL150, CL300, CL600, CL900, CL1500
Technique Forging, machining
Description
Titanium forged ring
The process for the seamless roll forged ring involves cutting a hole out of a forging material, and rolling it into a thin ring. The roll forged rings offer improved concentricity and smooth surfaces as compared welded rings. Forging rings also save the material compared to the machined rings from bar billet by not having to bore out the inner diameter.
