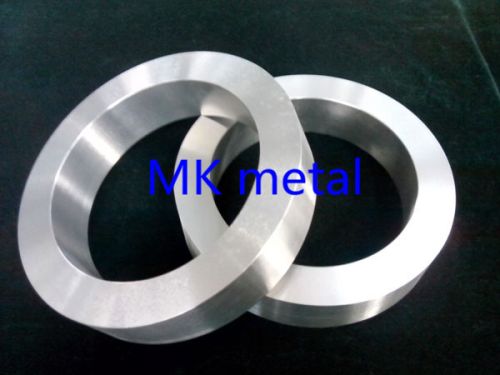

Titanium Forgings

● product description:
forging is the thermo-mechanical process of shaping metal using force and heat. forging may be performed for a number of reasons, but the primary reasons are to improve the structure and properties of the metal and to hot form the metal into size and shape that is nearer to the finished size of the parts that will be made from the material.
mingkun’s engineer has over 25 years of experience forging various titanium alloys, therefore you can be assured that our processes are proven, reliable, and produce the highest quality titanium forgings. We specialize in high strength titanium alloys. We have the capability to forge round bars, rings, discs, or multi-dimensional shapes.
● materials:
grade1 ti
grade2 ti
grade5 ti-6al-4v
grade6 ti-5al-2.5sn
grade7 ti-0.2pd
grade9 ti-3al-2.5v
grade12 ti-0.3mo-0.8ni
grade23 ti-6al-4v eli
● specification:
astm b381, ams 4920
● size:
outside diameter: forging disc: up to 1500 mm
　　　　　　　　　foring ring: up to 3000 mm
inside diameter: forging ring: 100 mm and up
thickness: forging disc: 35 mm ~ 150 mm
　　　　　 forging ring: 35 ~ 500 mm
● processing:
ø open die forging stamp forging ring rolling rotary swaging
ø surface treatment: as-forged or machined to be bright
ø average temper condition: annealed
