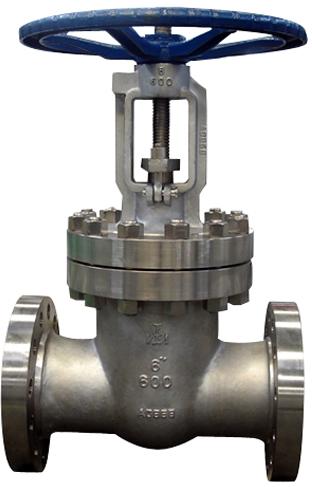

Titanium Gate Valve

We are offering titanium gate valve,
design standard: gb, jb, api, ansi, iso, bs, din, nf, jis, etc.
connecting type: flange connecting, welded connecting
structure manner: wedged spring disc, wedged rigid single disc,
wedged rigid double disc, rising stem& non-rising stem type
driving manner: handle driving, worm wheelgear driving, air operated, electric driving
pressure rating: pn1.0mpa~pn10.0mpa, class150~900
diameter size: dn15~600mm, nps1224? temperature: -29 degrees celsius ~ +540 degrees celsius
material range:
◆titanium: ta1, ta2, ta10, tc4, gr2, gr3, gr5
◆nickel: n6、n201、n200、cz-100
◆hastelloy alloy: hastelloy b（n-12mv、n-7m）, hastelloy c（cw-12mw）
hastelloy c276（cw-6mc）, hastelloy c4, hastelloy g30
◆monel alloy: m-30c、m35-1, monel 400, monel 600, monel k500
◆inconel: inconel 600, inconel 800, inconel 690
◆duplex steel : s31803(saf2205,f51),s32750(saf2507,f53)
◆zirconium: zirconium 702, zirconium 705
◆austenitic stainless steel: 1.4529、904l、254smo、654smo
◆stainless steel: 304、304l、316、316l、317l、310s
◆other: ns143alloy 20, c4. A105
major parts of the valve series and materials of sealing surface differ according to actual working condition and customers' special requirement.
