Contact SupplierLock nuts in diferent size can be used in many fields
sturdy
diverse colors to choose
we are special manufacturer who would offer you titanium products.

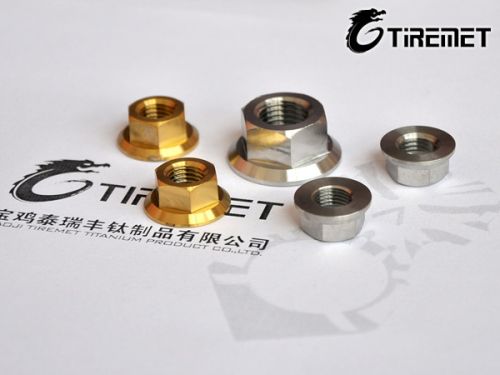

Name prevailing torque tpye hexagon nuts with flange and with nonmetallic insert
material pure andâ alloy titanium
grade gr2,â gr5â and other grade
standard din6926
size m5,m6,m8,m10,m12,m14,m16,m20
surface polishing
application chemail,petro,electropating,aeroplane,bicycle,motorcycle,mobilephone,racing car,wheelchair,weapon,etc.
Feature super-hard,ultra-light,super wear-resistant,corrosion-resistant and anti-loose with excellent performance
units:mm
dn p dc h m s
max max min min max min
m5 0.8 11.8 7.1 6.74 4.7 8 7.78
m6 1 14.2 9.1 8.74 5.7 10 9.78
m8 11.25 17.9 11.1 10.67 7.6 13 12.73
m10 11.251.5 21.8 13.5 13.07 9.6 15 14.73
m12 1.251.51.75 26 16.1 15.67 11.6 18 17.73
m14 1.52 29.9 18.2 17.68 13.3 21 20.67
m16 1.52 34.5 20.3 19.46 15.3 24 23.67
m20 1.52.5 42.8 24.8 23.96 18.9 30 29.16
