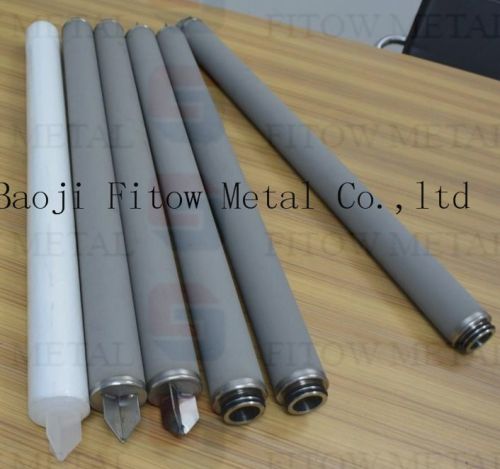

Titanium Powder Sintered Filter Cartridges, Brand Name : Fitow

We are offering titanium powder sintered filter cartridgeshigh purity titanium powder (99%) sintered under high temperature . Resist to strong acid, alkaline and ozone oxidation.can be washable and reusable . Suitable for solid liquid gas separation and purification in low -viscosity liquid material (with rigid particles )
feature
resistant high temperature and pressure
resistant strong acid and alkali
good permeability and resist to ozone oxidation
it can be washed repeatedly,reusable .low cost in operation
specification
outer diameter: φ60-φ63mm
length: 10-40 inch
porosity: 30%-50%
operating parameters
ph: 1~4
flow rate: 0.5th
max.temperature: 200℃(wet)
max.differential:0.50mpa
typical applications
steam filtration
steam filtration
filtration stage after ozone sterilization and filtration of
ozone aeration
guard filtration in decarbonization and dilution of transfusion,
small injection, oral
highly corrosive liquid and gas purification
liquid or gas in high temperature and pressure
order information
product micron outer dia. adapter length o-ring gasket
ti 100-1um d60-60mm nil- cut ends (cylinder) 10-10" s-silicone; n-nitrile
300-3um d80-80mm aa- doe ( with gaskets) 20-20" e-epdm ; t-teflon (encaptulated)
500-5um bf-222 seal 30-30" v-vition
1000-10um cf-226 seal 40-40"
2000-20um ybp- 1" bsp threaded 05-5"
hbp- 12" bsp threaded other-xx
