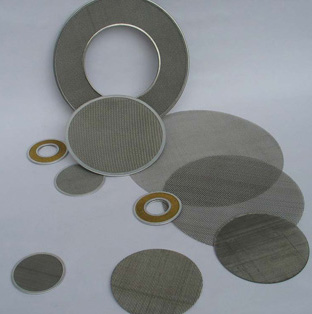

Titanium Wire Mesh

Application:titanium has the characteristic of light proportion, high strength, strong corrosion resistance and high temperature resistance and anti-oxidative stable performance in filtering.it was regarded as strategic metal and the most valuable metal and reputation in 21 century.the titanium wire mesh has been widely used in aerospace manufacturing industry,chemical machinery electric,desalination of sea water, medical equipment and other fields,playing an very important position and role in the national economic development.
titanium mesh was mainly used for sieving and filtering under the acid,alkali environmental conditions or gas,liquid filter and other medium separation.according to the weaving pattern, it was devided into plain weaving,twill weaving and dutch weaving method.plain woven method is the most common method,the main characteristics is that the density of the longitudinal and latitudinal wire is same.twill woven titanium mesh mainly used in petroleum,chemical industry,chemical fiber, aerospace and other industries,the ducth woven titanium wire mesh has stable and fine filtering performance,mianly used in aerospace,petroleum,chemical and other industries.
mesh count thread diameter(mm) aperture(mm) max width(m)
10 0.60 1.94 1.60
20 0.40 0.87 1.60
30 0.30 0.55 1.60
40 0.23 0.40 1.60
50 0.20 0.31 1.60
60 0.15 0.27 1.60
70 0.12 0.24 1.60
80 0.13 0.19 1.60
90 0.12 0.16 1.60
100 0.10 0.15 1.60
120 0.09 0.12 1.60
150 0.063 0.11 1.60
180 0.053 0.01 1.60
200 0.053 0.07 1.60
250 0.040 0.063 1.60
300 0.040 0.044 1.60
325 0.035 0.043 1.60
350 0.030 0.042 1.60
400 0.030 0.033 1.60
the specifications of above products are available according to the customer's request
