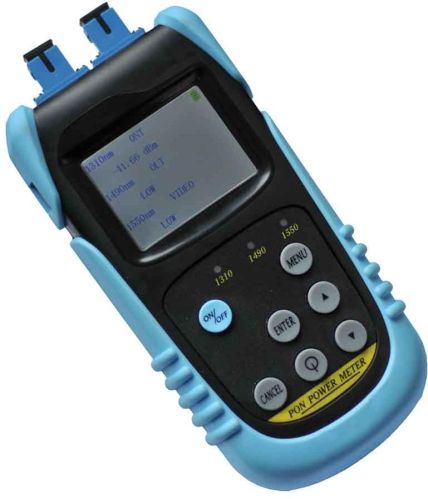

TLD6070 Optical Power Meter

TLD6070 optical power meter can provide precision measurement from 0.65 to 1.65μm wavelength ranges and measuring range including -70 to +6dBm, -50 to +26dBm. Optical power meter can test the PM power to the light, light stability, insertion loss, optical transmittance, reflectance of light and so on. It widely used in optical fiber communications, CATV, Fiber Optical Sensors etc. It is indispensable for scientific research and engineering construction.
�Features�
u Self-calibration function.
u Optional RS232 remote console interface.
u High sensitivity and large dynamic range
u 0.01 dBm precision
u Automatically converted Range
u Small size, light weight, high reliability
u Battery-powered, convenient field work
�Applications�
u Fiber optic production and research
u Testing and maintenance of fiber-optic network
u Teaching and testing in optical communication
�Specifications�
Type
TLD6070
TLD6070B
Detector
InGaAs
Fitered InGaAs
Wavelength Range�nm�
850,1300,1310,1490,1550,1625
850,1300,1310,1490,1550,1625
Power Measurement range(dBm)
+6 � -70
+26 � -50
Uncertainty
+5%
Resolution Ratio
0.01dBm
Power Supply
9V alkaline battery
Optical Connector
FC-type adapter (SC,ST is optional)
Operating Temperature
-10� to 60�
Storage Temperature
-20� to 70�
Work Humidity
