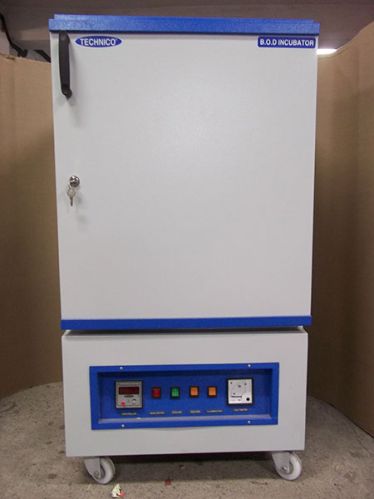

TLPPL 103 – “TECHNICO” BOD INCUBATOR
Technico BOD Incubator is a double walled chamber with interior made of stainless steel of 304 grade & exterior made of cold rolled mild steel finished in Epoxy powder coating. Insulation is by special grade glass wool. Removable stainless steel trays are provided at adjustable height.
Double door system, with inner acrylic door for full view of the inner chamber & outer double walled insulated door provided with lock & key arrangement.
Temperature is controlled by a digital ON/OFF controller with RTD sensor. A circulating fan assembly is incorporated in the unit for uniform temperature inside the chamber. Alternatively microprocessor based PID controller can be provided.
Inside illumination is provided by fluorescent tube lights.
CFC free refrigeration system by emersion – cope land compressor, Air cooled conditioner & accessories provided at bottom of the chamber.
The control panel consists of digital temperature controller, indicating lamps, ON/OFF switch etc. is provided at the bottom. The unit is mounted on smooth/free moving 4 nos. castor wheels for easy mobility.
Technical specifications :
Inner chamber size (mm) | Capacity (cubic ft.) | Capacity (lts.) | No. of trays (ea) | Power rating (kw) |
455 x 415 x 610 | 4.0 | 112 | 2 | 1.0 |
500 x 415 x 800 | 6.0 | 116 | 2 | 1.5 |
570 x 550 x 870 | 10.0 | 280 | 3 | 1.5 |
650 x 550 x 900 | 12.0 | 335 | 3 | 2.0 |
700 x 650 x 900 | 15.0 | 420 | 3 | 2.5 |
We can supply other BOD sizes like “MINI” or extra “LARGE”, as may be required by users.
Optional Extra
