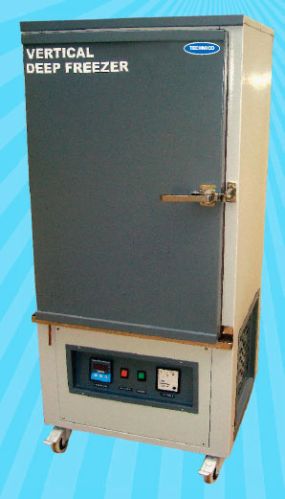

TLPPL 112 TECHNICO DEEP FREEZER VERTICAL MODEL

Techinco upright Deep freezer model is a double walled chamber. The inner chamber is made of corrosive thick gauge stainless steel sheet of 304 Grade and outer made of thick cold rolled mild steel, attractively finished in Epoxy powder coating. The inter space between the outer and the inner chamber will be tightly packed with PUF insulation on all the sides Trays at adjustable height.

The doubled walled door in the front, is made as per chamber construction, mounted heavy duty hinges and provided with effective locking arrangements. The door is gasketted along the edges for effective sealing of the door in closed position.

CFC free refrigerant system consists of hermetically sealed cope land compressor, air cooled condenser and heavy duty motor driven fan are provided at the low portion. Temperature is indicated and controlled by smart range of digital temp. controller working in conjuction with PT -100 sensor. The unit is mounted on the smooth moving castor wheels for eazy movement with the laboratory.

• Power : 230 Volts phase 50 cys.Ac
• Temperature Range : -20 Deg.C / -40 Deg. C

Optional:
Suitable Voltage Stabilizer.
