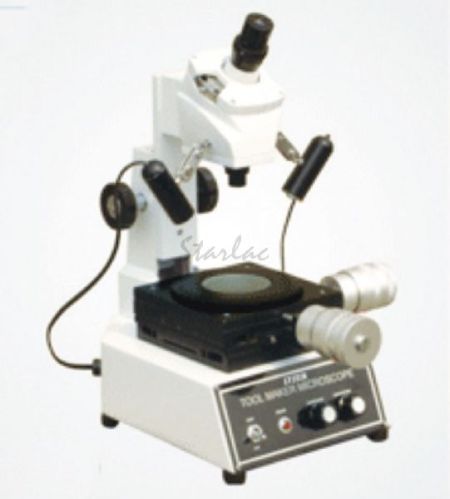

A highly precision and versatile instrument designed for most diversified jobs in tool room workshop. Provided with X-Y movement of 120mm x 120mm measuring stage, trave 50 x 50mm with the help of a slip gauge, equipped with zero adjustment Micrometers of 25mm graduation having least count 0.001mm. Eye protractor of 0-360 degree with adjustable verniers of least count 6 min. is provided. Total magnification of 30x is achieved through 2x objective and 15x WF Eyepiece. Having both transmitted and incident light in wooden box.
(MS-4522-a)
Same as above (MS-4522) but provided with projection screen of 4" dia and Equipped with triple revolving nosepiece, having three objective 2x, 4x and 5x, Coarse and fine focusing knobs are provided for better performance.
Optional Accessories are as follow :
A. Depth Measuring attachment
B. Centre holding device attachment
C. V-Block
D. V-Support
E. Measuring Eye Piece with reticles
F. Micrometer Measuring Rotary Stage
