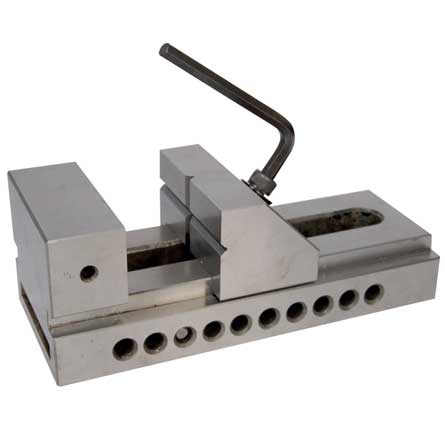

    Tool Makers Precision Screw Less Vice

    Tool Makers Precision Screw Less Vice

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    Features : The rapid positioning notches allow the vice to be locked in any position by means of an allen key provided with the vice. Vee grooves in the sliding jaw, both horizontal and vertical,....
    View More Details
    Send Enquiry

    Company Information

    Apex Industries
    location Industrial Area, Jalandhar, Punjab
    View Number
    • calendar Member Since 15 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    Features :
    • The rapid positioning notches allow the vice to be locked in any position by means of an allen key provided with the vice.
    • Vee grooves in the sliding jaw, both horizontal and vertical, facilitate holding of round jobs.
    • Jaw pressure on work piece is forward and downward for repeatable positioning and maximum holding power
    Application :
    • The vices are particularly suitable for erosion work. Construction 772 :
    • Manufactured from Selected Carbon Steel, these soild one piece vices are fully hardened (45-50 HRC) and tempered to ensure stability and durability.
    Accuracy :
    • Parallelism : within (15 Microns)
      Perpendicularity : within (15 Microns)
    Construction 772T :
    • Manufactured from Tool Steel Body, these soild one piece vices are fully hardened (52-60 HRC) and tempered to ensure stability and durability.
    Accuracy :
    • Parallelism : within 8 microns
      Perpendicularity : within 12 microns


    Specifications
    Size in inches34
    Width of Jaws (in mm )7597
    Depth of Jaws (in mm)4090
    Opening of Jaws (in mm)105130
    Length overall (in mm)7494
    Height overall (in mm)196245
    Weight (app. in Kgs.)48
