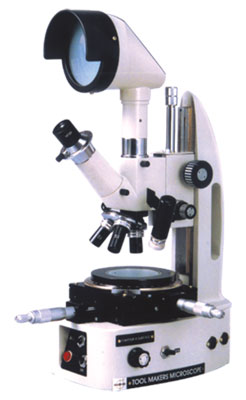

Observation Tube - Monocular, inclined at 45° fitted with Goniometric head graduated 360°.
Base - Large and heavy base provides extra overall rigidity to the instrument.
Stage - 125mm X 125mm with interchangeable intermediate table to receive different optional accessories. Equipped with micrometer head.
Rotary measuring stage dia 130mm is mounted on the table with 55mm glass aperture, circular graduated scale is divided into 360°.
Illumination - Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light.
Objective - 2x-3x-5x
Eyepiece - WF 10x (with cross) h10x (with micrometer) & H15x.
