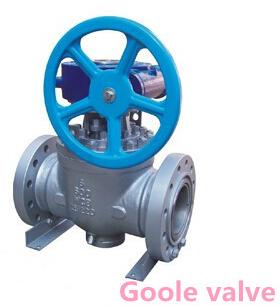

Contact SupplierTop entry trunnion Ball Valve
specification
Nominal Diameter : DN15-DN1200
Nominal pressure : PN16-PN420, 150LB-2500LB, 2k-100k
Temperature : -46 ~250 degree celsius
Connecting type:flange
Material : SS、CS, etc. ( Selected at clients’request )
Driving means:manual,pneumatic,wore gear,electric.
Applicable medium : water、gas、oil, etc.
Top entry trunnion Ball Valve Features:
1. Anti-static structure: Trunnion top entry ball is provided with the anti-static structure and adopts the static electricity discharge device to directly form a static channel between the ball and body or between the ball and body through the stem.
2. Double block and bleed(DBB): Both seats hold their respective pressures independent of the body cavity pressure which is ideal to verify the sealing of the seats.
