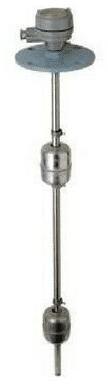

Top Mounted Level Switch

Process Control Devices offers a series of Level Switches. Designed to detect & control the level of liquid within a tank. Top Mounted Level Switch work on permanent Magnet Reed switch basis. Its floats contain permanent magnets move freely between their stopper with respect to the rise in liquid level in the tank. Hermetically sealed within the tube are reed switches, completely isolated from the tank medium. The Magnet’s field actuated the reed switch as the float moves although the stoppers restrict overrun and prevent the reed switch returning to its initial position.

► Simple and proven design

► Operates in most liquids

► Glandless for maximum safety & minimum maintenance

► Long and trouble free operation

► Low cost of ownership

► Outdoor design

► No Power Consumption

► Hazardous area models

Enclosure:  Weather Proof IP 65, Ex-Proof

Switch Type and Form: Hermetically sealed reed 1 No+1NC

Switch Rating:  0.5 Amp, 230 VAC (For Higher Rating Use Relay)
