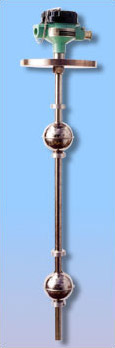

Top Mounted Multi Level Switch

Model No.: JB/TMMLS/412
Technical Specifications:
FEATURES
* Operation without power supply
* Reed switches separated from process
* Wetted parts stainless steel or plastic
* Up to 5 switch points
* Various process connections
* Explosion-proof models

APPLICATIONS
* Liquids with min. 0.7 kg/dm3 density
* Multi-point level switch in closed tanks
* Chemicals with dense vapour or gas layer above the surface
* Foaming liquids

SPECIFICATIONS
Switch Rating : 250 V AC, 3A / reed relay, max. 9A Ambient Temperature: -20 °C to 95°C Medium Temperature: -20 °C to 150°C Pressure: max. 25 bar Process connection: 1", 2" or flanges Protection: IP 65 Approvals: II 2 G EEx d IIC T3...T6 (TÜV)
