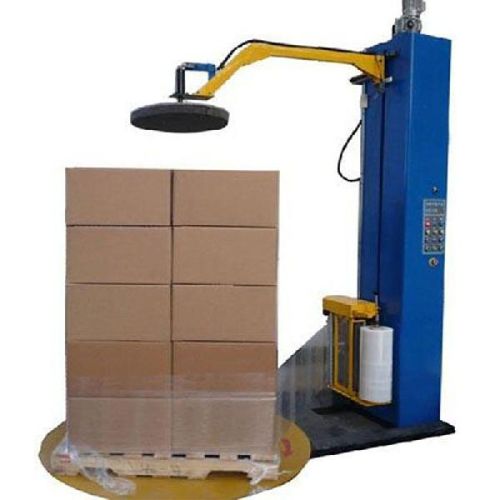

Top Platen Pallet Wrapping Machine, Brand Name : myway

1. Special install top platen unit to suit tall and light goods packing; plc easy operation control; pre-stretch system up to 300% of the film length (customized).
2 .stable performance, working life 10 years, quality guarantee 2 years.
3. European standard design and manufacture, same quality, but chinese market price; pass ce certificate.
4 .accept customer�s design order, satisfy customer�s different requirements, and install weighting unit ect.
5. Improve logistic efficiency, reduce goods loss during transporting, has waterproof, dustproof, reduce product cost, improve packaging grade.
6 .improve logistic efficiency, reduce goods loss during transporting, has waterproof, dustproof, reduce product cost, improve packaging grade.
model
t1650f-cs automatic pre-stretch top platen film wrapping machine
wrapping product size
l(500-1200) mm ã� w(500-1200)mm
wrapping height
according to customer�s requirement
packing efficiency
20-40 palleth
rotary speed
0~12rpm turntable transducer adjustable, turntable automatic re-back
turntable size
dia:1650mm height:85mm
turntable weight capacity
2000kgs
film carriage system
pre-stretch film carriage, pre-stretch up to 250%,
automatic transport film
up and down upright
double chain structure, adjustable up and down speed by transducer
control system
plc programmable
work voltage pneumatic system
0.6~0.8mpa 1000mlmin
machine weight
700kg
machine size
2745mmã�1650mm ã� (2260-3260) mm
electric
single phase ac220v50hz1.5kw
power
turntable 0.75kw, film carriage 0.4kw, upright 0.37kw
