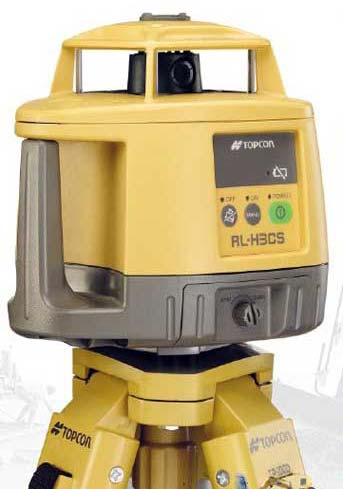

Contact SupplierThis RL H3CS Series Topcon Automatic Level available with us is a self-leveling instrument that is used in varied industries. Manufactured using the best quality raw materials, our Topcon Automatic Level comes with a combination of GC and point matching slope lasers. In addition to this, these Topcon Automatic Levels are provided with the added versatility of single-slopes up to 5%. Thus, this makes our Topcon Automatic Levels the right choice to vouch for.
Attributes
» Specifications
Model RL-H3C RL-H3CS Beam TypeRed (Visible Diode) Beam Power.8mW (Max.) Beam Range
LS-70 Sensor6’ - 980’ Dia. (2m - 300m) Accuracy ±15 arc seconds
(±.085 in 100 ft , ±3.6mm 50m) Self-leveling Range±3° Slope Range NA +-5% Rotation Speed600 rpm Power4 “C” size Alkaline Batteries Battery lifeApprox. 60 hrs Dimensions6.5”L x 7.1”W x 7.4”H
(167mm x 182mm x 189mm) Weight 4.1 lbs (1.9 kg) wbatteries Warranty1 Year Laser Receiver LS-70C LS-70B Grade Information Channels 5 (+highlow out of range) 9 (+highlow out of range) On-Grade PrecisionHigh precision: ±1mm (±0.04”)
Normal precision: ±2mm (±0.08”) Audible On-Grade AlarmYes Power9Vdc Alkaline Battery LifeApprox. 80 hrs Auto Shut-OffAfter 30 minutes wo beam detection
