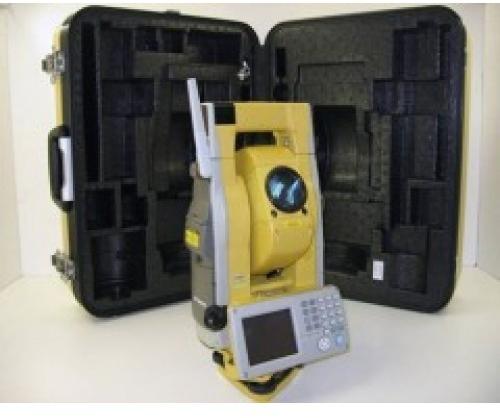

Contact SupplierWe are offering topcon gpt-9003a 3 robotic total station.
Price : us $ 3,840.
Description :
the topcon gpt-9000 series of robotic total station is the latest, most advanced system on the market today that boasts a new modern design, faster motors, 2000 meter reflectorless range, and new x-trac prism tracking technology.
Package comes supplied with following items below :
- topcon gpt-9003a 3" total station
- rc-3r w 360 prism
- fc-200 data collector w built-in radio
- battery charger
- 2x batteries
- original case
- owner's manual
spesification:
turning speed 85 degrees sec
tracking speed 15 degrees sec
tracking range 26 to 3,280 feet, 8 to 1000 meters
tracking accuracy 3 "
telescopelength 165 millimeters
objective lens diameter 45mm(edm:50mm)
magnification 30x
image erect
field of view 1° 30’
resolve power 3.0"
min. Focus distance 1.3 meters
measurement range
1 prism 9840 ft, 3000 meters
non prism 6500 ft, 2000 meters
measuring accuracy
prism mode ±(2mm+2ppmxd*) m.s.e. Fine
non prism mode ±(5mm) m.s.e. Fine (>25m), long range ±(10mm+10ppm) fine
minimum reading 1mm(0.005ft.)0.2mm(0.001ft.) fine
measurement time 1.2 sec.(initial 3.0 sec.) fine
angle measurement
method absolute
detection 2 sides horizontal, 2 side vertical
minimum reading 0.5"1" arc sec, 0.10.5 mgon
accuracy 3"
diameter of circle 71 millimeters
