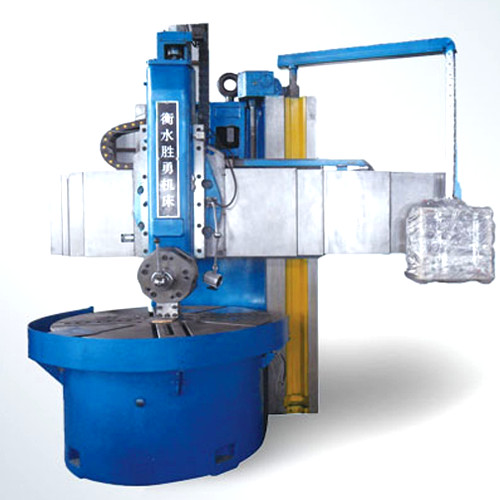

Torno Vertical CNC Metalworking Lathe Machines

₹ 45.25 Lakh / Set

transportationshipment
Supply TypeSupplier
Preferred Buyer Location All over the world

Product name : Torno vertical CNC Metalworking Lathe Machines Technical specification of Torno vertical CNC Lathe Machines: Ck5116 1 Table diameter 1400 mm 2 Maximum turning diameter 1600....

Company Information

HengshuiShengyongHeavy-dutyMachineToolManufacturingCo.Ltd.

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Product name : Torno vertical CNC Metalworking Lathe Machines
Technical specification of Torno vertical CNC Lathe Machines: Ck5116
1 Table diameter 1400 mm
2 Maximum turning diameter 1600 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 rmin
6 Rotation speed of work table 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool post 915 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 22 kw
revolutions 1470 rmin
14 Power of Feed motor 1.31.7 kw
Revolutions 9401440 rmin
15 Rapid travelling speed of tool post 2000 mmmin
16 Machine weight 12.5 t
17 Overall dimensions(L×W×H) 2800×2800×3800 mm
