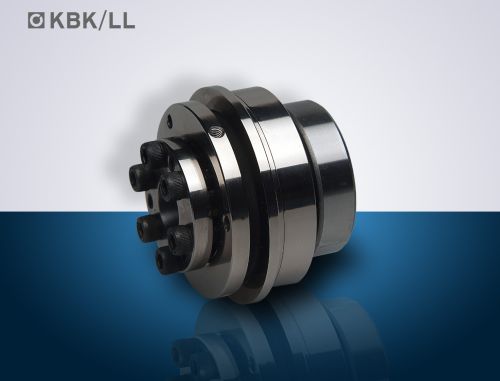

Torque Limiters

We are offering torque limiters.
rotolinear systems offer different types of torque limiter, which provides reliable protection for machines and human beings. The reaction (response) time is extremely short (milli seconds) and it is backlash free. Different overload torque and it is very easy to set the desired torque. It can be used for direct drives and indirect drives. torque limiter is based on the usage of cup springs with degressive characteristics. Once the adjusted overload torque range is reached the balls disengage automatically and the transmission of torque is interrupted/ after the torque fall below the allowable max torque, the torque limiter is re-engaged automatically and continues to transmit the torque. Torque limiters are available in torque range of 0.5nm to 1600nm. Four models are available in safety couplings 1st is for mounting tooth belt pulleys, sprocket wheels, spur gears the 2nd model bellow type with conical hub, 3rd bellows type with collet clamp, and 4th with servo insert type collet clamp. single position engagement, multiposition engagement and full disengagement options available.
