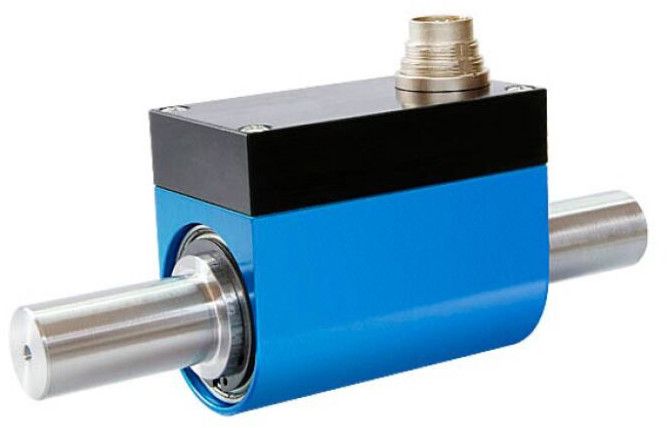

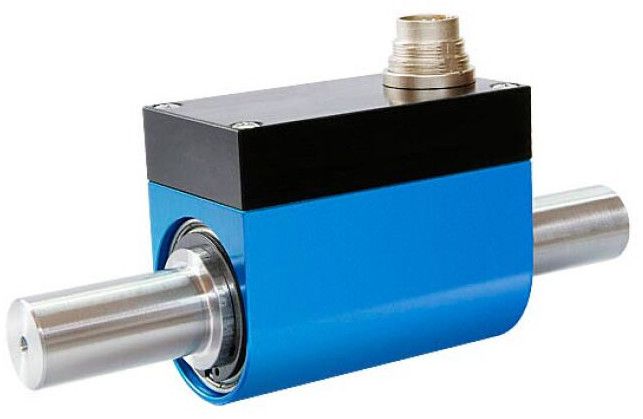

Stainless Steel Torque Sensor, Model: DR-2112, Color : Blue

Nominal torque Mnom N∙m 0.1 ... 20000 0.1 ... 1000

Accuracy class % Mnom 0.1 (optional 0.05) 0.2

Relative repeatability error in unchanged mounting position b′ % Mnom ±0.02 ±0.04

Rated range of supply voltage VDC 12 ... 28

Current consumption mA ≤60

Output signal V ±5

Control signal excitation V L <2.0; H >3.5

Sample rate kSample/s 10

Electrical connection 12-pin series 5812

Reference temperature Tref °C 23

Rated temperature range °C 5 ... 45

Operating temperature range °C 0 ... 60

Storage temperature range °C -10 ... 70

Temperature effect on zero signal TK0 % Mnom/10 K ±0.2 ±0.3

Temperature effect on characteristic value TKC % Mnom/10 K ±0.1 ±0.15

Maximum operating torque MG (static) % Mnom 150

Torque limit Mmax (static) % Mnom 200

Breaking torque MB (static) % Mnom >300

Permissible oscillation stress when subjected to torque Mdf % Mnom 70 (peak-to-peak)

Level of protection IP50.

Applications:

• Research and development

• Process measuring and control technology

• Fully automated machining centres

• Measuring and control devices

• Tool engineering

• Special mechanical engineering
