Torque Strength Testing Equipment, Torque Tester

We are offering torque strength testing equipment, torque tester etc.
The torque strength for package cap is an important index for manufacturers for online and offline observation. Properness of the torque strength would greatly influence transportation and consumption.

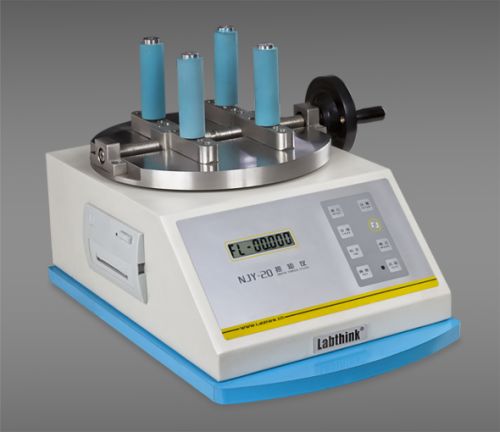

Labthink njy-20 torque strength testing equipment is monitored by mini-computer to realize dual testing modes for lock force and open easiness. The instrument is easy to operate with human-friendly interface. It can keep peak value automatically, display in multiple units, and carry out statistical analysis. Labthink njy-20 torque strength testing equipment is precise in measurement and stable in performance.
features of njy-20 torque strength testing equipment:
1. Controlled by micro-computer with menu interface, pvc operation panel and large lcd display
2. Standard testing units
3. Peek value can be saved automatically
4. 2 test modes for open force and lock force
overload protection, automatic zeroing and error alert for safe test operation
5. Rs232
this torque strength testing equipment conforms to astm d2063, astm d3198, astm d3474.
technical specifications of labthink torque strength testing equipment:
1. Test range: 20 nm (standard); 40nm (optional); 50nm (optional)
2. Accuracy: 1% of reading value
3. Resolution: 0.001nm
4. Clamp range: 5 mm ~ 170 mm (diameter)
5. Statistical analysis allowance: 1~9
6. Instrument size: 350 mm(l) x 240 mm(w) x 140 mm(h)
7. Power supply: ac 220v 50hz
8. Net weight: 19 kg
