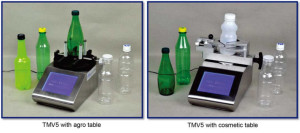

Torque Tester

Our Torque tester designed with a special mechanical system for measuring torque which cancels most non-coaxial and top load influences on the measurements. These features cancels most operator induced influences on the measurements for maximum repeatability.

• Touch screen display
• Measures opening and closing direction
• 0.080to 4.000 Kgf.cm in high accuracy mode
• Measuring range 00.00 to 99.00 Kgf.cm
• 3 measuring mode (mean, peak, peak+infos)
• Units: Kgf.cm /Inch.lbs/ daN /N.cm/N.m/N.cm
• Accuracy: + -0.5 of full scale
• 100 product memory with 4 limit each
• 4 thresholds by product (V Low, Low, High, V High)
• 20 operator’s memory
• Setting of file by Administrator code
• Store and transfer up to 999 measurements
• Message + bar graph of torque value
• Dynamic display: statistics, hour, date
• Display: product name, operator, batch N*, Line N*
• 1 RS232 output of software & 1 printer output
• Language: French/Italian/Spanish/English
• Delivered with COFRAC calibration certificate
• 110/230 V-50/60 Hz
