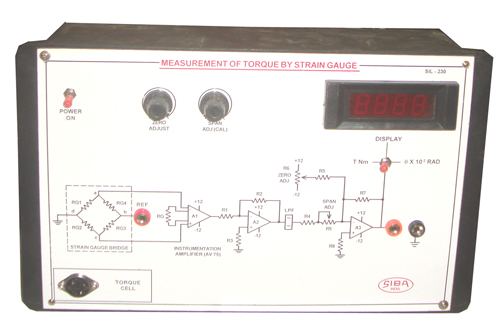

Torque Transducer

This set up is designed to study of strain gauged load cellutilization as torque measuring transducer. The set up consists a straingauge bridge, the signal conditioner circuit and a digital display calibratedfor torque / angle measurment. The set up have its own inbuilt regulateddc supplies
