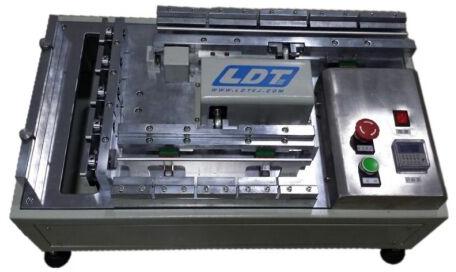

Torsion Testing Machine, Brand Name : LDT

Function:
1.This machine is suitable for bending and distorting IC card according to the conditions already set .And testing whether the quality of IC card is qualified.
2.It is controlled by relay, dynamo drives eccentric wheel so that card fixture can move back and forth and reverse. As a result, card in the fixture can be bended and distorted. Times of bending and distorting are controlled by counter and are settable.
3.The machine will stop automatically after finish action.
Machine Spec:
1.Power Supply: AC 220V50 Hz
2.Power:About 100W
3.Counter Range:0~9999
4.Bending Module Quantity:Length edge, width edge, deforming angle, totally 3.
5.Torsion Angle:0°~15°
6.Card Size:ISOCR80IEC7810 54×85.6mm
7.Length And Width Torsion Distance:0mm~10mm
8.Weight: 40 Kg
9.Dimension:L605×W350×H150mm
