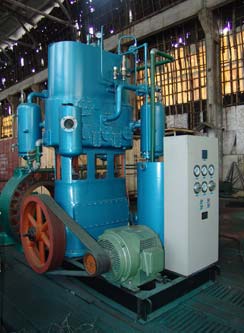

We are amongst the biggest suppliers and exporters of Oil Free Oxygen Compressor from Wenling City, Zhejiang. We provide big capacity totally oil free oxygen compressors. We also have other big models which are manufactured strictly according to the industry standards. The biggest advantage is the safety and reliability of the product. Due to easy installation, durability and long maintenance free life, our product remains a favorite choice amongst our clients. We undertake bulk orders too.
| Model | 3ZW-3.9/165 |
| Vertical type, five stages, | |
| Compressed medium | oxygen |
| Capacity | 3.9 m3/min (200 Nm3/hr) |
| Suction pressure | 0.0002 MPa (0.002 bar) |
| Discharge pressure | 16.5MPa (165 bar) |
| Suction temperature | ≤40 |
| Discharge temperature | ≤40/ by 5th stage cooler) |
| Shaft power | ≤70 |
| Stoke of piston | 180mm |
| Shaft speed | 280 r/min |
| Lubricant temperature | ≤70 |
| Water inlet temperature | ≤30 |
| Water outlet temperature | ≤40 |
| Consumption of cooling water | ≤10 t/h |
| Cooling way | water cooling |
| Consumption of lubricant | none |
| Oil pump pressure | 0.15MPa |
| Driven way | Driven by belt |
| dimension | 2575mm×2064mm×3407mm |
| Weight of compressor | 6000KGS |
| Motor | |
| Type | 3 phase asynchronous motor |
| Model | JY2250M6 |
| Rated voltage | 75KW |
| Voltage | 380V |
| Frequency | 50Hz |
| Rated rotational speed | 985 r/min |
| Protective level | IP 23 |
| Electric control cabinet | |
| Model | Cabinet |
| Type | XHS-75 |
