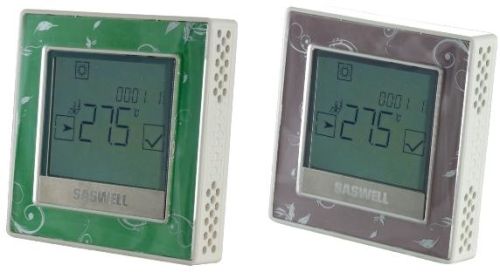

Touch Screen Fan Coil Room Thermostat, Brand Name : SASWELL

We are offering touch screen fan coil room thermostat.
details of this product display
t12.1fct-2-485 fan coil digital thermostat
application:
heatcool, 3speed fan, 2 pipe fan coil unit.rs485 communication function
touch screen type fan coil thermostats specification:
1.electrical rating…………………………100-240vac 5060hz
2.fan relay amps inductive………………3(2)a
3.heatcool relay amps inductive……….1(0.5)a
4.room temperature setting range………5°c to 35°c
5.dimensions………………………………86mm×86mm×15mm (or 3.38″×3.38″×0.6″)
touch screen type fan coil thermostats features:
large lcd display with backlight,high-grade color touch screen border(color optional: green, white, black, purple, orange, light green, coffee, light coffee)
2 power down the permanent memory
3.temperature correction function
4.three kinds of temperature control mode selection (refrigeration mode, heating mode, and the wind mode)
typical fan coil room thermostats wiring diagram
multi color touch pad room thermostats for fan coil details show:
