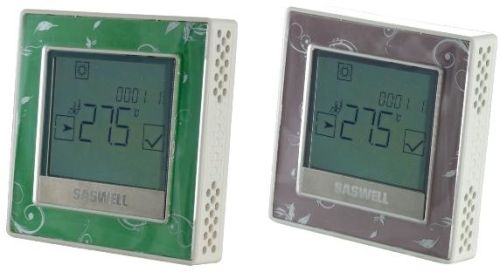

Contact SupplierWe are offering touch screen floor heating room thermostat.
Detail product description
t12.2 electric heating
t12.1 is a programmable manual driven thermostat designed for floor warming application or helping to limit floor temperature. This thermostat can be used for hot water radiant heating systems and electric heating cable system. Control both temperature & humidity .
technical data
power source 100-240vac 5060hz
temp. Accuracy 0.5°c or 1°f
humidity accuracy 1%rh
enviroment humidity range 20%rh-90%rh
room temperature setting range 5°c-90°c
floor temperature control range 5°c-99°c
relay contact 16a250v
operation enviroment temperature 0°c-50°c
storage envrioment temperature -10°c-60°c
dimensions 86mmx86mmx15mm
feature
1 large lcd diplay with backlight
2 permanent user setting retention during power loss,
3 optional economic operation or comfort operation
4 high-end color touch screen border(a variety of color can be chosed: green, white, black, purple, orange yellow, light green, brown, light brown)
5
optional programming period: 7 individual day programming with 48 separate time to select economic or comfort mode.(every half hour as a period of time) cancel the programming function.
6 display temperature recalibrates
7 optional type of control for different heating application including room thermostat; floor thermostat or room thermostat with floor limitation
8
optional temperature display of celsius or fahrenheit scale
9
the thermostat can have comminicate with the rs485 and modbus.
