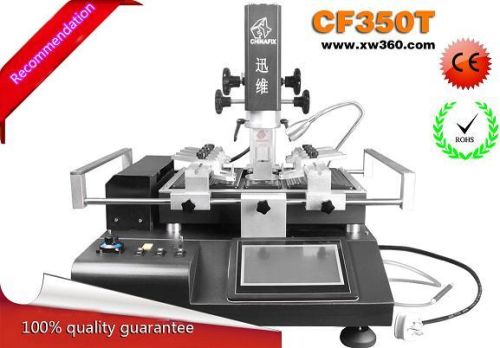

Touch Screen Soldering Station, Brand Name : CHINAFIX

We are offering touch screen soldering station.
Model:chinafix cf350t
solder type:leaded solderlead free
smd type:micro bga,bga,csp,qfp
pcb thickness:0.5mm~4mm
pcb size:w50mm*d50mm~w455mm*d350mm
heating modepower(upper):hot-blast air 800w
heating modepower(bottom):hot-blast air 800w
preheating modepower:ir 2400w
pcb location mode:shape or tongs
driving mode:gear,rack
controladjusting mode:touch screen + plc
temperature range:room temperature 0~400°c
max power:4000w
supply voltage:110v220v
machine dimension:610mm(l) * 550mm(w) * 600mm(h)
weight:28kg
cf350t characteristic:
intelligent mute, pre-warning when curve end up, precise temperature-control, operation audio-visually
1, the hot-air part adopts exported long-life heating coil, through special insulation heating treatment, heating uniformlier, long-life to use well.
2, the design of three warm area support, can fine adjust to support height, avoid welding-area to sink.
3. The upper hot air-flow can be adjusted, use different air-flow to different chips, preciser temperature, it's not easy to make expand.
4, overtemperature protection function,over the temperature, heating coil automatic power off.
5, intelligent mute function, keep mute under non-working condition.
6, new type design of air outlet with mixed wind, air-out temperature uniformilier.
7, machincal part adopts oxidation treatment, main machine box use thicken material, prevent shapeless at whole hog.
8, upper heating part continue to use high-grade products' design of move by xy shaft, treating all kinds of shapeless chips easiler.
9, three warm areas can be controlled separated, to achieve the function of soldering and dry.
10, complete machine construction adopts the only design of dismounting easily, exchange electric parts simply and conveniently, warranty with fast speed, machine's rate of utilization reaches the highest.
