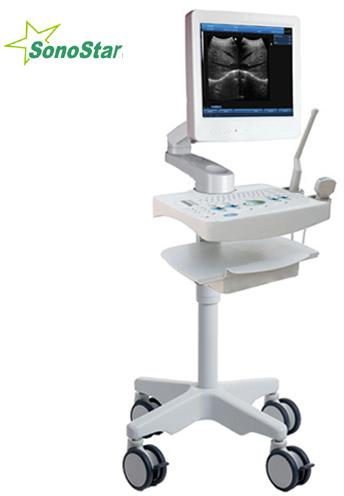

Touch Screen Trolley Ultrasound Diagnosis Scanner

We are offering touch screen trolley ultrasound diagnosis b scanner
download the catalog
feature:
-full digital imaging technology
-crystal-clear image
-computer platforms, abundant functions
-powerful image and report management
-3d image function(optional)
-dicom display and transfer
-250g large storage volume
-broadband multi-frequency probes
-compatible with usb laser/inkjet printers
-pretty and new appearance
-15 inch touch screen color lcd monitor
-silica gel backlight waterproof keyboard
-8 segment tgc, 16 step zoom
-complete application software packages
-can work with external battery(option)
-2 probe connector
-can be fold, the transportation is convenient and lower freight
specification:
-d-maximum scanning depth: max.250mm
-multi-frequency: 5 segment frequencies
-zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-image gray scale: 256 level gray scale
-cine loop: max.1024 frames
-scanning mode: b, 2b, b/m, m, 4b, 9b, zoom;
real-time zoom on b mode
-image processing: pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, black/white inversion; gray scale adjustment, contrast, brightness, î³ revision.
-gain: gain: adjustable between 0-100db;
time gain control(tgc): 8 segment adjustment, b, m adjustment separately.
-monitor: 15 inch touch screen color lcd monitor
-supported output apparatus: u-disk, laser/ink printer, video printer, vga
-measurement and calculation(human):
b mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
m mode: heart rate, time, distance, slope and stenosis;
gynecology measurement: uterus, cervix, endometrium, l/r ovary;
obstetric: gestation age, fetal weight, afi;
cardiology: lv, lv function, lvpw, rvawt;
urology: transition zone volume, bladder volume, ruv, prostate, kidney;
small parts: optic, thyroid, jaw and face.
-measurement and calculation(veterinary):
cattle: bpd, crl, td; horse: ga; dog: gs; cat: hd, bd;
sheep: bpd, crl, td
-image store: by 250g hardisk or usb disk
-print: by usb laser/inkjet printers
-dicom3.0, medical digital imaging and communication
-probe connector: 2
-weight: around 25kg
report
report model
patient manage
set ob list
set application image parameters
dicom
