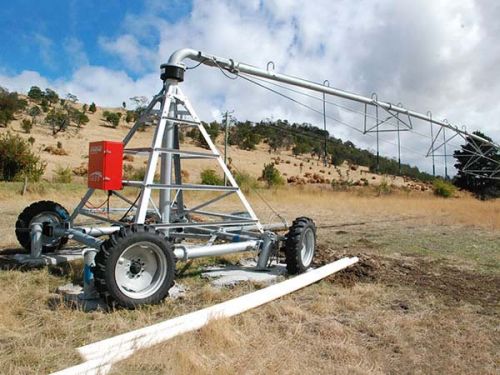

Towable Center Pivot Irrigation System

Three or Four Wheels are assembled on the centre of pivot. The System can be moved from one place to another by tuning main pivot point tower with a trace.

Description :

The towable center pivot allows farmers to manually move the irrigation system in the field. The direction of the mobile pivot may change while it is working or being towed. When towing, lock the tire position so you have more control. A steel cable attached to the first and last span is needed to tow the center pivot.
Specifications :

• Leg angle size: 100mm×100mm×10mm thickness
• Riser: 8"×3mm
• Elbow: 8"×3mm thickness

A special design forms a solid anchor for even the longest systems.

Control panel :

• Main breaker
• Control transformer
• Start and stop switch
• Main contactor
• Monitoring indicators
• Forward / reverse contactors rated 600v at 30 amps
• Fuses – 30 amps
• Lightning arrestor

System monitors :

• Control power
• Pressure guage
• Last tower movement
• Control circuit power
• Safety circuit status
• Reverse control circuit
• Forward control circuit
• Pump control circuit
• Incoming 380V power

Our main control also supports :

• No water start stop
• Running direction (auto-stop/auto-reverse)
• Speed adjusting
• Under voltage relay
• Over current relay
• Emergency stop
• Low water pressure shut off

Guarantee :

• 1 year for electric equipment
• 10 years/10,000 working hours for gearboxes and gear motors, whichever expires first
• 20 years for galvanized equipment against corrosion
• 3 years for tires and rims
