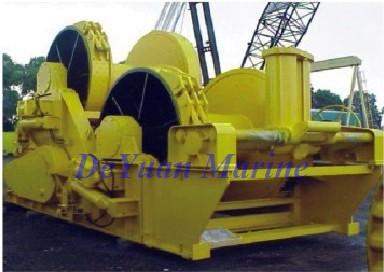

Towing Winches

We are offering towing winches, anchor windlass, mooring winches
*anchor windlass chain size:16 to 97mm
*anchor windlassmooring winch: up to 200t brake holding
*anchor windlasstowing winch: up to 300t brake holding
*towing winch: up to 300t brake holding.
anchor windlasstowing winches; anchor windlassmooring winches
model awt-16~97 awm-16~97
drive hydraulic or electric
type single or double gypsy single or double drum
dia.chain φ16~97mm(u2,u3) φ16~97mm(u2,u3)
rated load 10kn~447kn 10kn~447kn
drum load 10n~2000kn 10n~2000kn
drum brake load 50kn~3000kn 50kn~3000kn
drum capacity 100~1000m 100~1000m
clutch hydraulichandle operated jaw type
brake spring loaded hydraulic releasehandle operated type
power required 4~160kw 3.5kw~132kw
control local control& remote control in wheelhouse
option length& tension monitoring system, stainless steel lined on drum brake band. Chain stopper.
