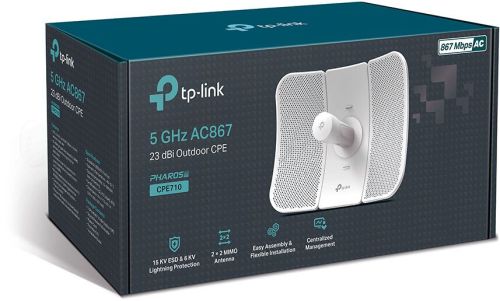

Tp-link CPE710 5GHz AC 867Mbps 23dBi Outdoor Cpe Antenna

₹ 9,999 / Piece

Selectable Channel Width: 20/40/80MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/ Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, SSID Broadcast Enable/ Disable Multi-Discovery and Remote Management via Pharos Control application HTTP/ HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)23 dBi
Qualcomm 750MHz CPU, MIPS 74Kc128 MB DDR2 RAM, 16 MB Flash
Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof designIEEE 802.11a/n/ac
Supply TypeManufacturer, Exporter, Supplier, Importer, Trader
Preferred Buyer Location All over the world

Company Information

Member Since 2 Years
Nature of Business Manufacturer
GST No. 07AFZPA5127L1Z1

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

85.8×43.9×29.7 mm1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Dimensions20×20×5 cm
CE, FCC, RoHS, IP65, ICOutdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Kits AC Power Cord Installation Guide
Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof designIEEE 802.11a/n/ac
Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic)5.15–5.85 GHz
9° (Azimuth)/7° (Elevation)15 KV ESD Protection 6 KV Lightning Protection
>84.29%CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)23 dBi
Max. 27 dBm (Adjustable power by 1dBm)WAN: Static/ Dynamic/ PPPoE LAN: Static/ Dynamic/ DHCP Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger Security: SPI Firewall/ Ping Forbidden/ DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
100-240VAC, 50/60Hz24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Qualcomm 750MHz CPU, MIPS 74Kc128 MB DDR2 RAM, 16 MB Flash
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset ButtonPassive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27V DC
Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna AlignmentOptimized IGMP Snooping / Proxy for multicast applications
Weight0.5 kg
Selectable Channel Width: 20/40/80MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/ Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, SSID Broadcast Enable/ Disable Multi-Discovery and Remote Management via Pharos Control application HTTP/ HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browOperating Temperature: -40â~70â (-40â~158â) Storage Temperature: -40â~70â (-40â~158â) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
Remote Reset ButtonGreen

802.11ac for up to 867Mbps on 5GHz wireless data rate, Memory 128 MB DDR2 RAM, 16 MB Flash, Processor Qualcomm 750MHz CPU, MIPS 74Kc
23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
Excellent beam directivity, improved latency and noise cancellation
Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
Pharos Control gives administrators a free, centralized management system
Passive PoE supports to allow flexible deployment and convenient installation
Worry-free customer support —— For installation related query, compatibility issue, warranty service or any other general queries call on toll free no 1800 2094 168 or write us at support.in@tp-link.com
