Contact SupplierWe are offering tp2 thermal protectors.

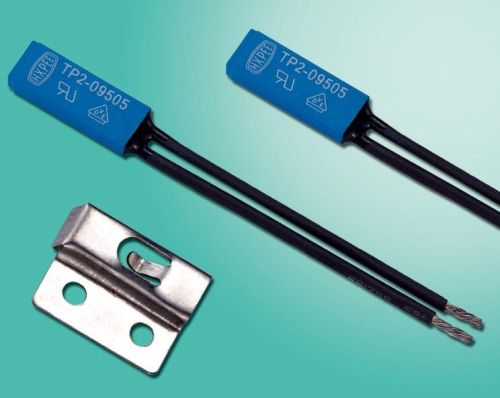

Product name : tp2 series thermal protector
using scope
applies to the fractional horsepower motor, fluorescent ballasts, motor of washer,
motor of air conditioner, transformers, lighting lamps, dc motor of automobile,
battery changer, household electric appliances, oa-machines etc.
Best seller point
miniature size, superior heat response, rapid response, good dcac performance,
high grade thermoplastic insulated case, reliable safety capacity, got the ul873 certification.
Technical parameters:
rated voltage: ac250v125v (5060hz)
rated current: 6a12a
rated open temperature range: 45~140℃, in steps of 5℃
switching cycles in: 10,000 cycles
open temp& reset temp
code ot(℃) rt(℃) code ot(℃) rt(℃)
45 45±5℃ ≥30℃ 95 95±5℃ 65±15℃
50 50±5℃ ≥35℃ 100 100±5℃ 70±15℃
55 55±5℃ 42±8℃ 105 105±5℃ 75±15℃
60 60±5℃ 45±8℃ 110 110±5℃ 80±15℃
65 65±5℃ 48±10℃ 115 115±5℃ 85±15℃
70 70±5℃ 50±12℃ 120 120±5℃ 90±15℃
75 75±5℃ 53±14℃ 125 125±5℃ 90±15℃
80 80±5℃ 55±15℃ 130 130±5℃ 95±15℃
85 85±5℃ 60±15℃ 135 135±5℃ 95±15℃
90 90±5℃ 60±15℃ 140 140±5℃ 100±15℃
