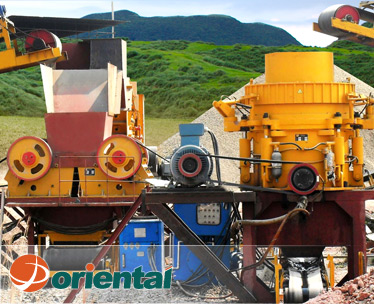

Tph Complete Crushing Plant

We are offering 250-300 tph complete crushing plant.
the 250-300 tph jaw & impact crushing plant includes vibrating feeder gzd1300x4900, jaw crusher pe900x1200, impact crusher pf1315, vibrating screen 3yzs1860, belt conveyor and centrally electric controlling system, etc.
the 250-300 tph jaw & cone crushing plant includes vibrating feeder gzd1300x4900, jaw crusher pe900x1200, cone crusher zys51-b,zys51-d, vibrating screen 3yzs1860, belt conveyor and centrally electric controlling system, etc. This designed capacity is from 50t/h to 500t/h. To meet customer’s specific requirement, we can also add other equipments such as impact crusher, dust catcher on the crushing plant.
process of 250-300 tph complete crushing plant
big materials are fed to the jaw crusher pe900*1200 evenly and gradually by vibrating feeder gzd1300*4900 through a hopper for primary crushing. After first crushing, the material will transferred to cone crusher zts51"-b by belt conveyor b1200*21m for secondary crush; the crushed materials will then transferred to vibrating screen 3yzs1860 for separating. After being separated, the parts that can meet standard will be taken away as final products, while the other parts will be returned to impact crusher pf1315, thus forming a closed circuit. Size of final products can be combined and graded according to customer’s specific requirement. We can also equip dust catcher system to protect environment.
250-300tph jaw & cone crushing plant
no. equipment model qty.
ⅰ vibrating feeder gzd1300*4900 1
ⅱ jaw crusher pe900*1200 1
ⅲ spring cone crusher zts51"-b 1
ⅳ vibrating screen 3yzs1860 1
① belt conveyor b1200*21m 1
② belt conveyor b1000*24m 1
③ belt conveyor b1000*24m 1
④ belt conveyor b650*25m 1
⑤ belt conveyor b650*(8+20)m 1
⑥ belt conveyor b650*(8+20)m 1
250-300tph jaw & impact crushing plant
no. equipment model qty.
ⅰ vibrating feeder gzd1300*900 1
ⅱ jaw crusher pe900*1200 1
ⅲ impact crusher pf1315 2
ⅳ vibrating screen 3yzs1860 2
① belt conveyor b1200*21m 1
② belt conveyor b1000*24m 1
③ belt conveyor b1000*24m 1
④ belt conveyor b650*25m 1
⑤ belt conveyor b650*(8+20)m 1
⑥ belt conveyor b650*(8+20)m 1
