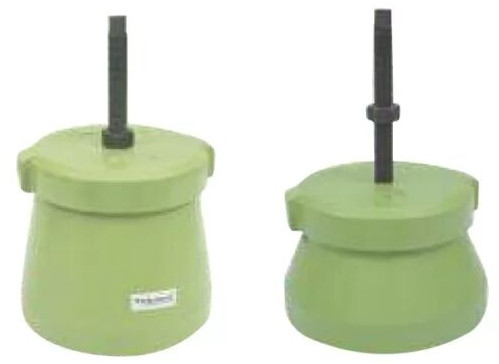

TPM Series Mounts Series DRC

Number Of FlowerMounts
FeaturesSuitable For Machines With Tapped Hole In Base. Bolt Rests Over Dimple On Top Face.
Supply TypeManufacturer
Preferred Buyer Location India only

Series DRC, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.

View More Details

Send Enquiry

Company Information

Dynemech Systems Pvt Ltd

Sonipat, Haryana

View Number

Member Since 2 Years
Nature of Business Manufacturer
GST No. 06AABCD4754E1ZX

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model	Load (Kg/pc)	Bolt Size	Dia(D) mm	d mm	H mm	Adjust.Range	Applications
DRC1-u	350	M12 x 100	109	87	150	8	Applications: Compressors, Tool Room Machines, Plastic injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
DRC2-u	600	M16 x 100	150	108	150	8
DRC3-u	900	M16 x 100	170	136	150	10
DRC4-u	1400	M18 x 150	210	161	150	10
DRC5-u	1900	M20 x 150	240	185	150	12
DRC6-u	2500	M20 x 150	270	215	150	12
DRC1-m	450	M12 x 100	109	87	150	8	Applications: Lathe Machines, Machining Centers, CNC Machines, Milling Machines, Precision Grinding Machines, Drilling Machine, Turning Centers, Transfer Lines etc.
DRC2-m	800	M16 x 100	150	108	150	8
DRC3-m	1150	M16 x 100	170	136	150	10
DRC4-m	1750	M18 x 150	210	161	150	10
DRC5-m	2400	M20 x 150	240	185	150	12
DRC6-m	3200	M20 x 150	270	215	150	12
DRC1-p	175	M12 x 100	109	87	155	8	Applications: Measuring & Testing Machines, Surface Plates, Hardness Testers, Microscopes, EDM Machine, Profile Projectors etc.
DRC2-p	300	M16 x 100	150	108	155	8
DRC3-p	500	M16 x 100	170	136	155	10
DRC4-p	700	M18 x 150	210	161	155	10
DRC5-p	950	M20 x 150	240	185	155	12
DRC6-p	1250	M20 x 150	270	215	155	12
DRC1-s2	300	M12 x 100	109	87	160	8	Applications: Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
DRC2-s2	550	M16 x 100	150	108	160	8
DRC3-s2	850	M16 x 100	170	136	160	10
DRC4-s2	1250	M18 x 150	210	161	160	10
DRC5-s2	1700	M20 x 150	240	185	160	12
DRC6-s2	2200	M20 x 150	270	215	160	12
