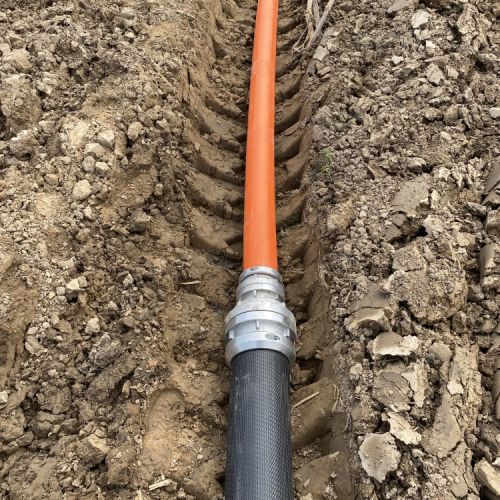

TPU Drag Hose, Color : Orange, Brand Name : Biaohui

₹ 4,550 - ₹ 27,300 / meter

MaterialTPU
Brand NameBiaohui
ColorOrange
ShapeRound
UsageTractor Use, TPU Drag Hose Is Designed For Distribution Of Slurry And Manure And Fertilizer,Delivery Of Water In
Supply TypeManufacturer
Preferred Buyer Location China only

Product Details

UsageTractor Use, TPU Drag Hose Is Designed For Distribution Of Slurry And Manure And Fertilizer,Delivery Of Water In
ColorOrange
ShapeRound
MaterialTPU
Brand NameBiaohui

Drag hose is a thermoplastic polyurethane lay-flat hose used to transfer sludge, slurries and liquid manure in agricultural irrigation field continuously. It is designed to endure high tensile strength and high abrasion when dragged. It has the advantages of flexibility, abrasion resistance, great adhesion, high tensile strength, UV,oil and chemical resistance. It has a long lifetime and low maintenance on rougher surfaces.

Agriculture manure drage hose is made from thermoplastic polyurethane and reinforced with high strength circular woven polyester or polyamide.

Drag Hose Structure

Tube & Cover: Thermoplastic polyurethane(TPU)

Reinforcement: High strength circular woven polyester or polyamide

Temperature: -50℃ to +80℃ (-58℉ to +176℉)

Application: TPU drag hose is designed for distribution of slurry and manure and fertilizer, delivery of water in self propelled machinesfor irrigation

TPU Drag Hose is designed for the latest environmentally friendly umbilical drag systems. It’s used for distribution of slurry, manure and fertilizer in agriculture. The hose is connected between slurry reservoirs (lagoons) and tow tractors in the field to be fertilized.

The tow tractor pulls the drag hose behind it while the hose feeds the injection tool bar that deposits the manure in the plowed furrows. The abrasion resistance of TPU cover is 4 – 5 times that of commonly used rubber. The tensile strength has been substansially increased to withstand the pull forces.

TPU Drag Hose Features

Flexible in all weather conditions from -50℃ to +80℃
Acid, alkali and corrosion resistant
Extra abrasion and oil resistant
Low coil volume for easy handling
Cold and small flow resistant
Germany type Storz, American Bolt on style, Victaulic coupling. Camlock is optional according to the requirement.

TPU Drag Hose Advantages

Standard color black, other colors on request
Individual marking available
Binding with international couplings available on request
Other diameters on request
Standard lengths 100m and 200m

TPU Drag Hose Packing

Generally the packing would be pallet or steel hose holder. Customized packing is also available.

TPU Drag Hose Specification

ID		Tolerance	Wall Thickness		Service Pressure	Minimum Burst Pressure	Weight		Tensile Strength
inch	mm	mm	inch	mm	bar/psi	bar/psi	kg/m	lbs/ft	kgs	lbs
4″	102	+2.50	0.16	4.20	13/200	39/600	1.60	1.07	16500	36500
5″	127	+3.00	0.17	4.30	12/160	36/480	2.00	1.34	19500	43000
5-1/2″	140	+3.00	0.17	4.30	10/150	30/450	2.40	1.61	21000	47500
6″	154	+3.00	0.18	4.50	10/150	30/450	2.80	1.88	25000	55500
7″	178	+3.00	0.18	4.50	10/150	30/450	3.20	2.14	31000	68000
