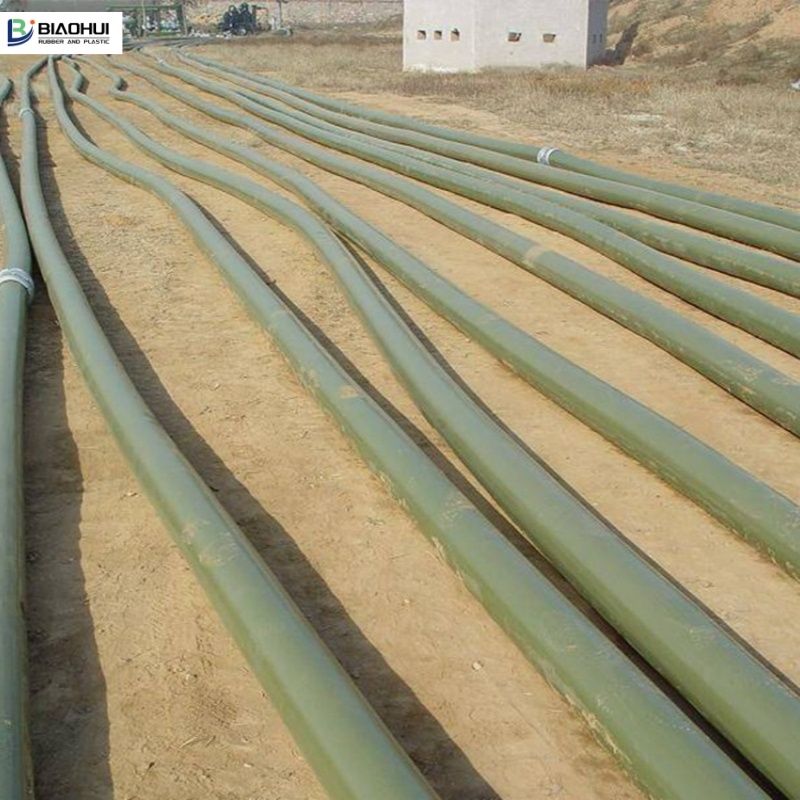

Thermoplastic TPU Fuel Transfer Hose, Brand Name : Biaohui Standard

TPU Fuel Transfer Hose is a super heavy-duty through-the-weave polyurethane (PU) covered hose.  The jacket inside the hose shall be made from high tensile synthetic polyester filament yarn,with circular woven method, it will totally be embedded in the PU compound, the covered PU will protect it against mechanical damage, forming a single homogeneous construction without any glues or adhesives of any type between them.Thermoplastic polyurethane (TPU) is extruded “through the weave” in a unique one step production process. This process combined with UV protection additives and ageing-resistant in the compounds makes this transfer hose ideally suited for high abrasion applications in the mining and water transfer/fracking applications.Construction

Specifition：

SizeWorking PressureBurst PressureWall ThicknessLength

Inch	mm	Bar	Psi	Bar	Psi	mm	m/ft
2	51+1.5	17	250	51	750	2.7	200/660
3	77+2.0	17	250	51	750	3
4	103+2.0	17	250	51	750	3.2
6	154+2.5	17	250	51	750	4.2
8	204+3.0	15	215	45	645	4.5

Size, working pressure and wall thickness can be customized as required
