TPU Layflat Water Supply Hose, Color : Black, Blue, Red, Yellow

₹ 4,525 / 300 meter

MaterialTpu
CertificationIso Certified
ColorBlack, Blue, Red, Yellow
ApplicationIndustrial Use, Long-distance water supply in fire fighting, emergency water removal during floods, industrial large
Supply TypeManufacturer
Preferred Buyer Location China only

Product Details

MaterialTpu
ColorBlack, Blue, Red, Yellow
CertificationIso Certified
ApplicationIndustrial Use, Long-distance water supply in fire fighting, emergency water removal during floods, industrial large
Pakaging Size20-30kg
SizeStandard
ConditionNew

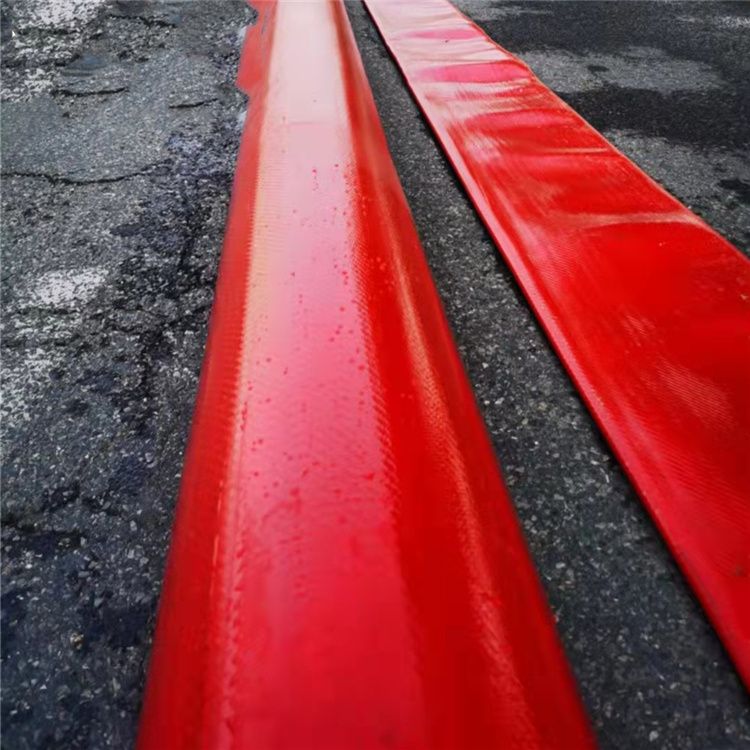

TPU layflat hose is a super heavy-duty through-the-weave polyurethane (PU) covered hose. The jacket inside the hose shall be made from high tensile synthetic polyester filament yarn,with circular woven method, it will totally be embedded in the PU compound, the covered PU will protect it against mechanical damage, forming a single homogeneous construction without any glues or adhesives of any type between them.

Thermoplastic polyurethane (TPU) is extruded “through the weave” in a unique one step production process. This process combined with UV protection additives and ageing-resistant in the compounds makes this transfer hose ideally suited for high abrasion applications in the mining and water transfer/fracking applications.

Construction

Cover and liner: High quality TPU

Reinforcement: High tenacity synthetic yarn

Technical Parameters

Color: Black or as required

Size: 16 inch(DN400)

Length: 200m(660ft) or as required

Temperature: -50°C～+80°C(-60°F to 176°F )

Features

High pressure, abrasion resistant, extremely tough, oil and chemicals resistance, fast deployment and retrieval, excellent flow rates, long service life

Application

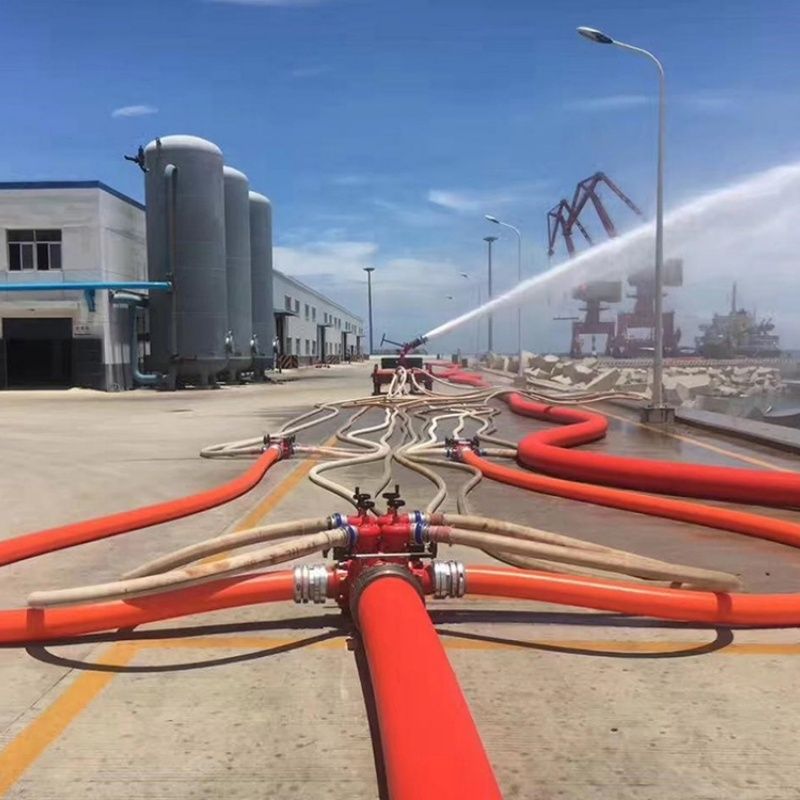

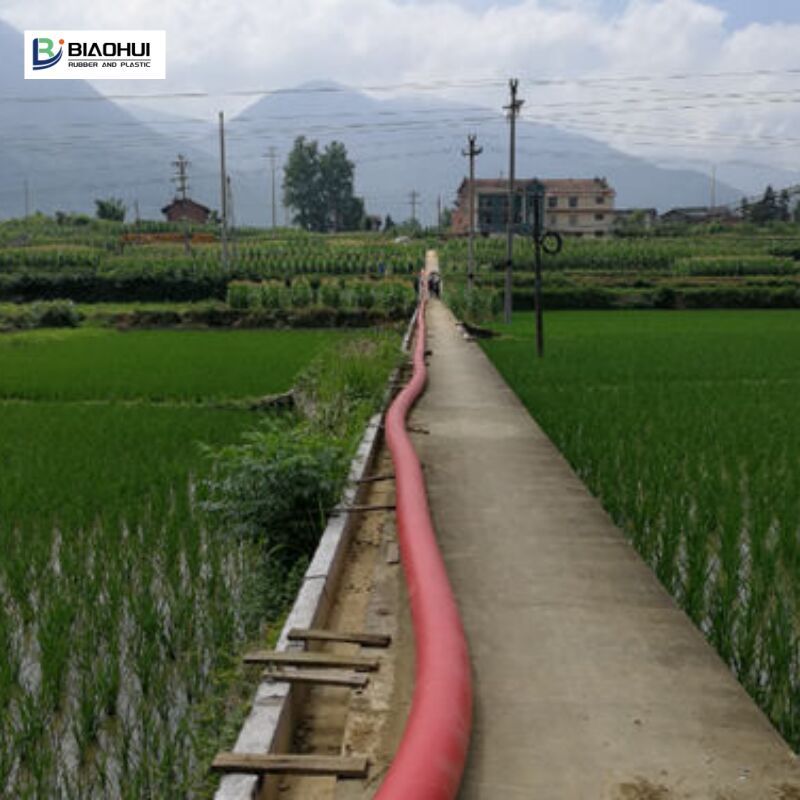

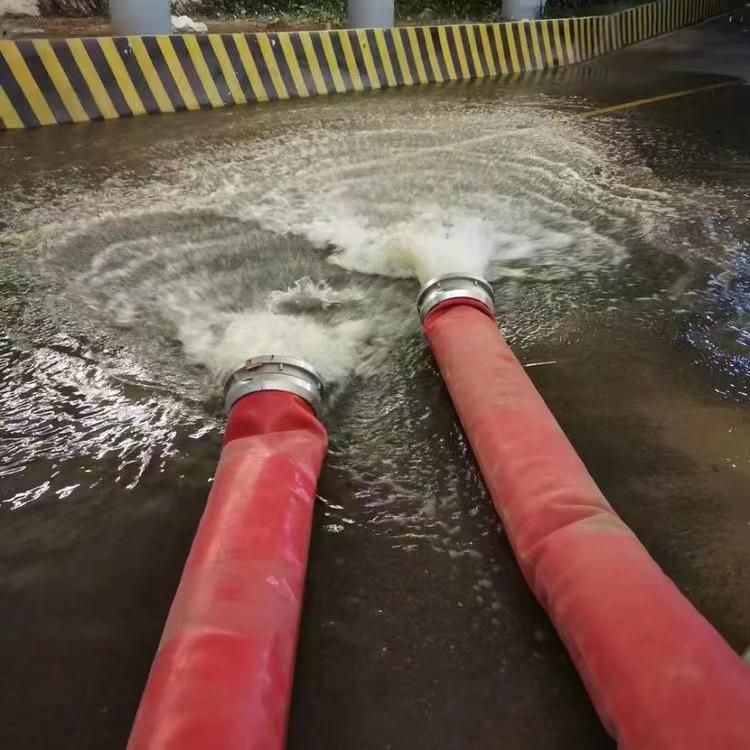

Long-distance water supply in fire fighting, emergency water removal during floods, industrial large volume water discharge, irrigation supply and frac solution

Specifition：

ID		Tolerance	Wall Thickness		Service Pressure	Minimum Burst Pressure	Weight
inch	mm	mm	inch	mm	psi	psi	lbs/ft	kg/m
2″	51	51.0-53.0	0.071	1.80	250	750	0.28	0.42
2″	51	51.0-53.0	0.138	3.50	410	1230	0.47	0.70
3″	76	76.0-78.0	0.118	3.00	250	750	0.60	0.90
3″	76	76.0-78.0	0.126	3.20	410	1230	0.70	1.05
4″	102	102-104.5	0.110	2.80	200	600	0.72	1.08
4″	102	102-104.5	0.138	3.50	250	750	0.87	1.30
4″	102	102-104.5	0.142	3.60	300	900	0.94	1.40
4″	102	102-104.5	0.189	4.80	610	1830	1.27	1.90
5″	125	125-127.5	0.142	3.60	150	450	1.21	1.80
6″	152	154-157	0.126	3.20	150	450	1.27	1.90
6″	152	154-157	0.149	3.80	250	750	1.41	2.10
6″	152	154-157	0.165	4.20	300	900	1.68	2.50
6″	152	154-157	0.228	5.80	410	1230	2.28	3.40
6″	152	154-157	0.216	5.50	610	1830	2.14	3.20
8″	204	204-207	0.149	3.80	200	600	1.94	2.90
8″	204	204-207	0.157	4.00	250	750	2.28	3.40
8″	204	204-207	0.165	4.20	300	900	2.35	3.50
8″	204	204-207	0.165	4.20	410	1230	2.68	4.00
10″	254	256-259	0.165	4.20	200	600	2.68	4.00
10″	254	256-259	0.177	4.50	250	750	3.02	4.50
10″	254	256-259	0.197	5.00	300	900	3.69	5.50
12″	306	306-311	0.165	4.20	150	450	2.81	4.20
12″	306	306-311	0.197	5.00	200	600	3.48	5.20
14″	356	356-360	0.189	4.80	150	450	4.36	6.50
16″	406	406-410	0.197	5.00	100	300	4.56	6.80
16″	406	406-410	0.212	5.40	150	450	5.23	7.80
