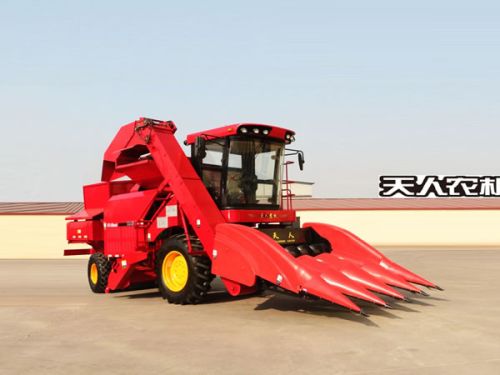

TR9988 Self-propelled Corn Combine Harvester

Quick Information
Brand Name: TIANRENPlace of Origin: ChinaModel Number : 012Certificate : CEType : Combine HarvesterUsage : Grain Harvester
Description
TR9988 Self-propelled Corn Combine Harvester
Model TR9988
Function picking up, peeling,cutting stalks, unloading etc
Number of rows 4
Regular row spacing (mm) 650, 450850
Workable row spacing range (mm) ±50
Engine power (kwhp) 128175
Size (mm) 9500*3300*3900
Wheel base (mm) 2000
Grain tank Volume (m³) 4.8
Unloading height (mm) 2600
Breakage rate ≤1%
Total loss rate ≤3%
Peeling rate ≥85%
The minimum corn cob height from field(mm) 200
Harvesting efficiency (acrehour) 1.3-2.4
NW (kg) 9300
Stubble height (mm) ≤120
Flail chopper Optional
Stalk chopper Optional
Air conditioner Optional
More Features:
● Total Loss Rate: ≤ 3%
● Trustworthy High Pressure Common Rail Diesel Engine (European emission standard III) from Weichai
● Engine with fireproof containment protection, Keep corn whisker away
● Aluminum Alloy Gear Box
● Clutch comes with Two friction plate for extended service life
● Sheller concave with Hydraulic adjustment
● Upgraded driving cab with more comfortability
● Stalk cut into piece shorter than 10cm with Field Straw Chopper
● Advanced husking unit design: high peeling rate, good adaptability, less grain loss, high reliability.
● Air Conditioner
● Rustproof Finishment
● Real time operation monitor system with LCD Panel
Main Advantage:
● Tianren Corn Corn Picker, Corn Harvester and Combine harvester are all equipped with TIANREN industry leading corn head
● Reliable and durable chassis design: equipped with quality gearbox, stepless speed adjustment; strengthened front axel, underframe, and main frame, more durable.
● Leading performance diesel engine: featuring huge power reserve and less fuel consumption.
